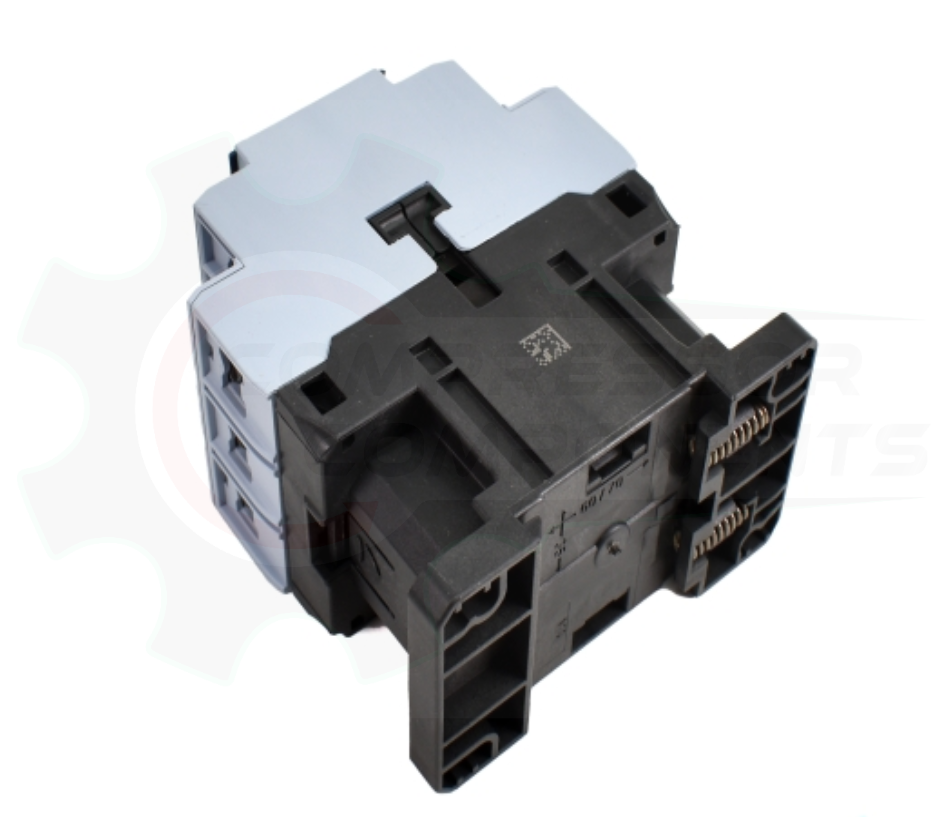

WEG CWB25-11-30D02 25A 3-Pole Contactor – 24 VAC Coil, 1NO/1NC

WEG CWB25-11-30D02 25A 3-Pole Contactor – 24 VAC Coil, 1NO/1NC

$113.95 USD
$113.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New
Tell a friend
View full details

Product Description

WEG CWB25-11-30D02 IEC contactor with a 25A AC-3 rating and 24 VAC coil. This 3-pole contactor includes 1 normally open + 1 normally closed auxiliary contact and screw terminals.

Technical Specifications

Manufacturer WEG
Part number CWB25-11-30D02
Series CWB
Rated current 25A AC-3
Main poles 3 normally open
Built-in auxiliary contacts 1 NO + 1 NC
Coil 24 VAC
Terminal type Screw

Compatible Replacement Coils We Carry

The AC CWB25 platform uses the BRB-38 AC coil family. Choose the replacement coil that matches the control voltage of the application.

Compatible 3-Pole Overload Relays We Carry

These WEG RW27-2D3 overload relays direct-mount to the CWB25. Select the range from the motor nameplate full-load amps.

Compatible Auxiliary Contact

Selection Note

The D02 suffix identifies this complete contactor as the 24 VAC coil version. When replacing the complete contactor, match the required control voltage as well as the contactor frame and motor load.

Need help confirming the correct contactor, coil or overload? Send Compressor Components the motor nameplate data and control voltage and we can help verify the selection before you order.
