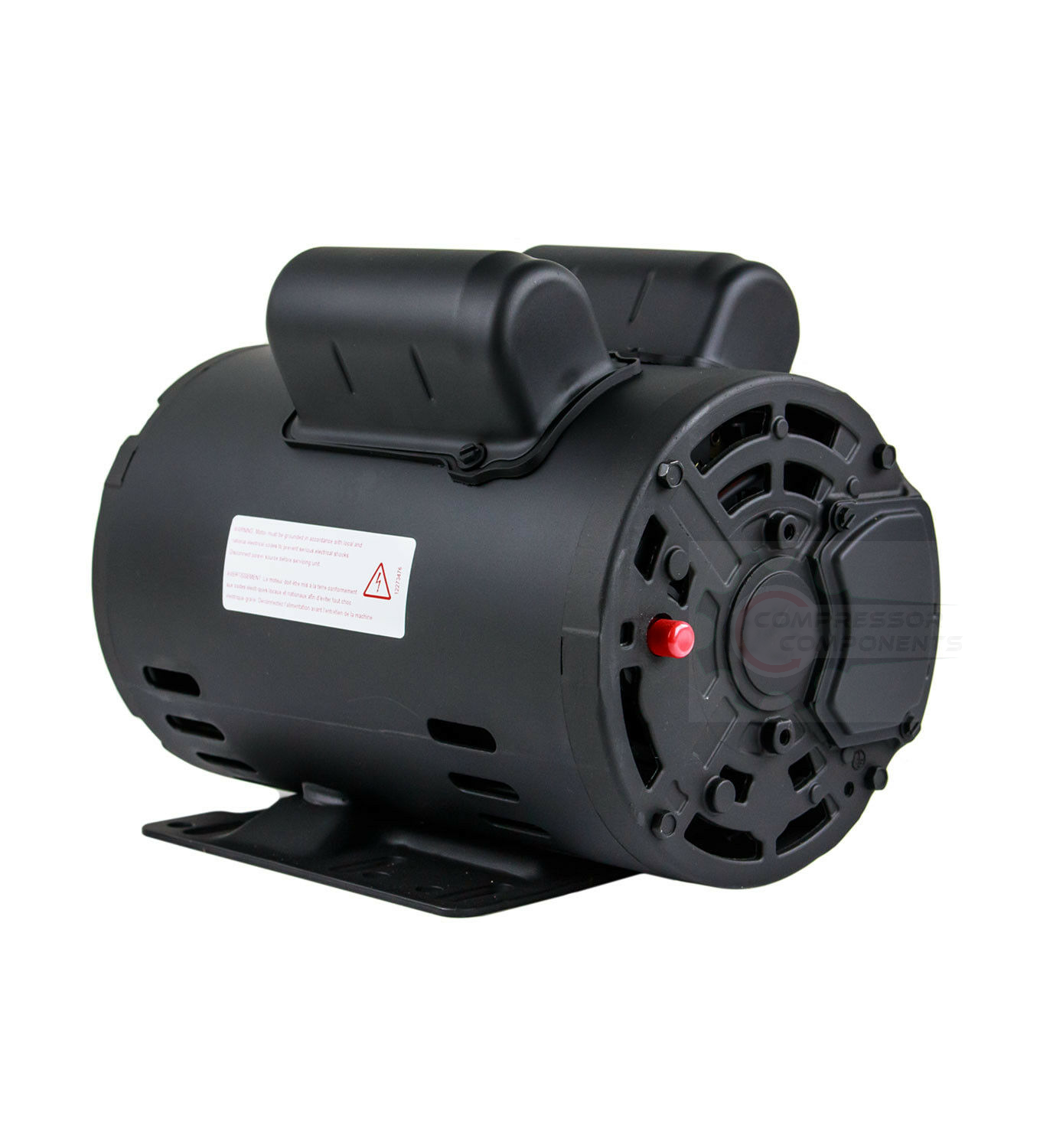

WEG 00336OS1CCD56-S 3 HP 56H Frame 208-230V Single-Phase ODP Compressor Motor

WEG 00336OS1CCD56-S is a 3 HP single-phase compressor-duty motor for air compressor applications requiring a 56H-frame, high-speed ODP motor.

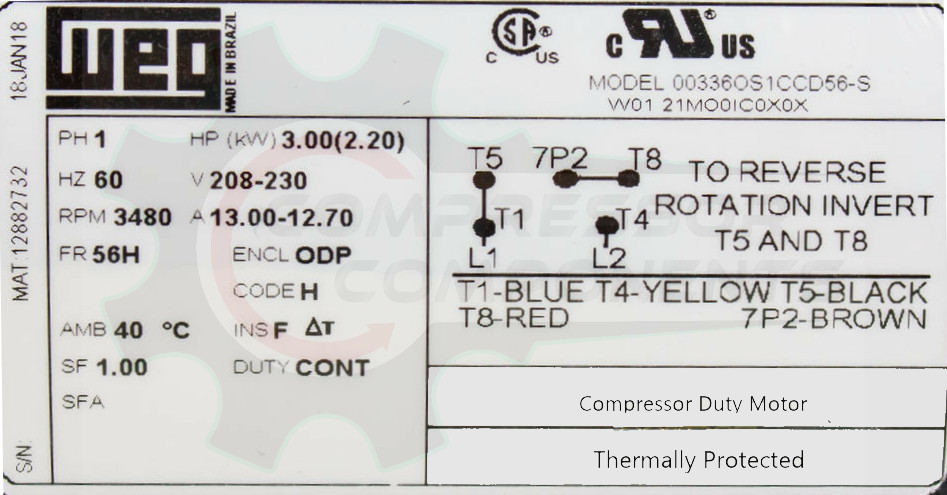

Specifications

• Horsepower: 3 HP
• Phase: Single phase
• Voltage: 208-230V
• Frequency: 60 Hz
• Frame: NEMA 56H
• Poles: 2
• Rated speed: 3480 RPM
• Synchronous speed: 3600 RPM
• Full-load amps: 13.0A at 208V / 12.7A at 230V
• Service factor: 1.00
• Enclosure: ODP (Open Drip Proof)
• Mounting: Foot mounted
• Shaft diameter: 5/8 in.
• Rotation: Reversible

Application / Selection

Designed for compressor-duty service where the equipment requires a 3 HP, 56H-frame, 208-230V single-phase ODP motor. No exact compressor make/model fitment is claimed without documentation. Verify horsepower, voltage, frame, shaft dimensions, mounting, RPM and rotation requirements against the motor being replaced.
