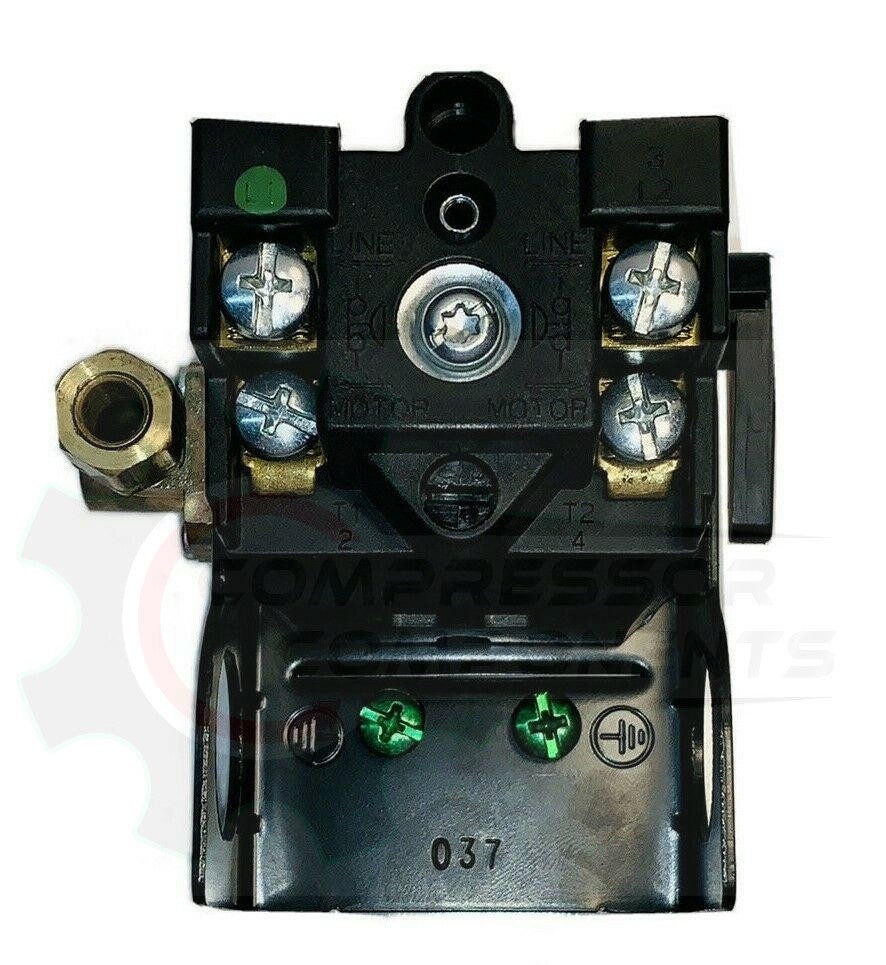

Hubbell 69JF8LY2C 4-Port Air Compressor Pressure Switch - 115/150 PSI

Hubbell 69JF8LY2C 4-Port Air Compressor Pressure Switch - 115/150 PSI

Regular price $64.95 USD
Regular price Sale price $64.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New

Available: 1 in stock


View full details

Product Description

Hubbell 69JF8LY2C is a 4-port 115/150 PSI air-compressor pressure switch with Auto/Off lever and unloader.

✓ Verified Replacement Part Numbers

  • Campbell Hausfeld CW207593AV
  • Hubbell HC69JF8LY2C — Hubbell catalog alias for 69JF8LY2C.

Verified Compressor Applications

  • Campbell Hausfeld DP561500
  • Campbell Hausfeld DP4615
  • Speedaire 4ME98
  • Speedaire SDRDP5612
  • Speedaire SDRDP5632

Specifications

Part Number 69JF8LY2C
Series Hubbell 69JF
Factory Setting 115 PSI cut-in / 150 PSI cut-out
Adjustable Differential 25–38 PSI
Minimum Cut-In 90 PSI
Maximum Cut-Out 165 PSI
Pressure Connection Four 1/4" female NPT manifold ports
Control Auto/Off lever
Unloader Included
Motor Ratings 1.5 HP at 120V 1-phase; 2 HP at 240V 1-phase; 3 HP at 240V 3-phase
Enclosure NEMA 1
Unloader connection 1/4" compression

Current Replacement

Hubbell 69JG8LY2C is the heavier-duty current replacement for 69JF8LY2C. It retains the same 115/150 PSI, four-port, Auto/Off lever and unloader configuration with higher electrical motor-load capacity.

Application / Selection

For Campbell Hausfeld CW207593AV and listed Speedaire applications, verify the 115/150 PSI setting, four 1/4" female NPT manifold ports, unloader arrangement and motor electrical requirements before installation.

Connection specifications: Four 1/4" female NPT manifold ports; unloader connection: 1/4" compression.

Pressure Settings

Compressor starts (cut-in) 115 PSI
Compressor stops (cut-out) 150 PSI
Factory differential 35 PSI

Selection and Documentation

Confirm pressure settings, pressure-port arrangement, unloader tubing and the switch’s motor-load rating. Use a correctly rated magnetic starter where the motor load exceeds the switch rating.

Hubbell / WorldWide Electric pressure-switch catalog and model data
