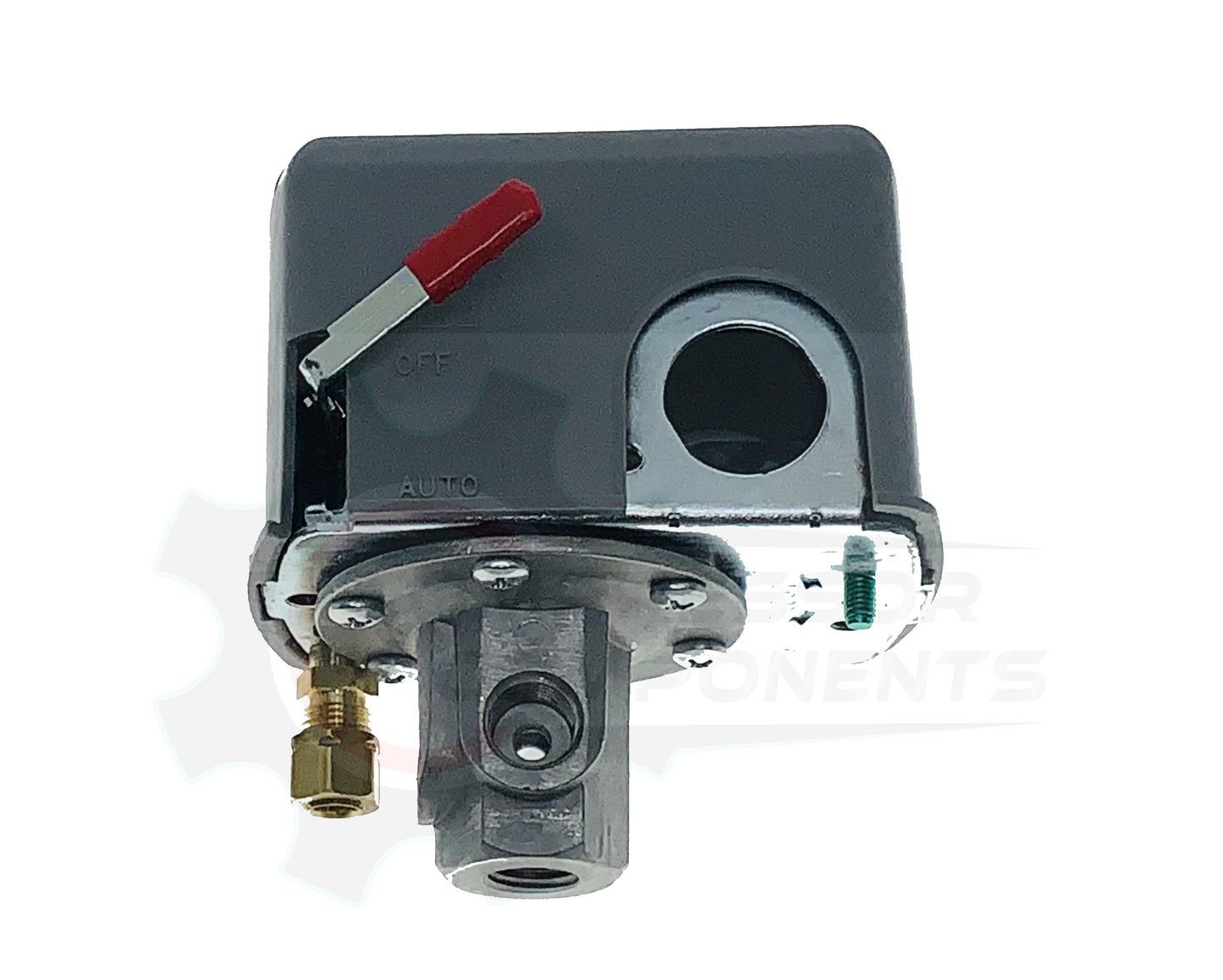

• Square D 9013FHG4J27M1X 4-port 80/100 PSI pressure switch
  • 9013FHG4J27M1X pressure switch with Auto Off and unloader
  • Square D 9013FHG4J27M1X four-port pressure switch detail
  • 9013FHG4J27M1X air compressor pressure switch alternate view
  • Square D 9013FHG4J27M1X pressure switch connection view
1 6

Square D 9013FHG4J27M1X 4-Port Pressure Switch - 80/100 PSI, Auto/Off & Unloader

Square D 9013FHG4J27M1X 4-Port Pressure Switch - 80/100 PSI, Auto/Off & Unloader

$79.95 USD
$79.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New
Tell a friend
View full details

Product Description

Square D pressure switches are now Telemecanique Sensors, manufactured by Schneider Electric.

The 9013FHG4J27M1X is a four-port air-compressor pressure switch with an 80 PSI cut-in and 100 PSI cut-out setting, maintained Auto/Off lever and pressure-release/unloader valve.

Specifications

Brand Telemecanique Sensors
Manufacturer Schneider Electric
Part Number 9013FHG4J27M1X
Series 9013FHG / Pumptrol
Factory Setting 80/100 PSI
Adjustable Range on Rising Pressure 40–100 PSI
Fixed Differential 20 PSI
Pressure Connections Four 1/4" FNPS ports
Manual Control Auto/Off
Unloader 1/4" compression
Contacts DPST
Motor Rating 1.5 HP at 120V 1-phase; 2 HP at 240V 1-phase; 3 HP at 240V 3-phase
Enclosure NEMA 1

Legacy Brand: Square D

Application / Selection

Designed for small electrically driven air compressors requiring a four-port manifold, Auto/Off control and unloader. Match the pressure setting, port configuration and electrical requirements before replacement.

Connection specifications: Four 1/4" FNPS pressure ports; unloader connection: 1/4" compression.
