WEG RW67-5D2-U057 40-57A 2-Pole Thermal Overload Relay for CWB Contactors
WEG RW67-5D2-U057 40-57A 2-Pole Thermal Overload Relay for CWB Contactors
Regular price
$123.95 USD
Regular price
Sale price
$123.95 USD
Unit price
per
Orders $25 or more ship free to the lower 48. Shipping details.
Condition :
New
Couldn't load pickup availability
View full details
Product Description

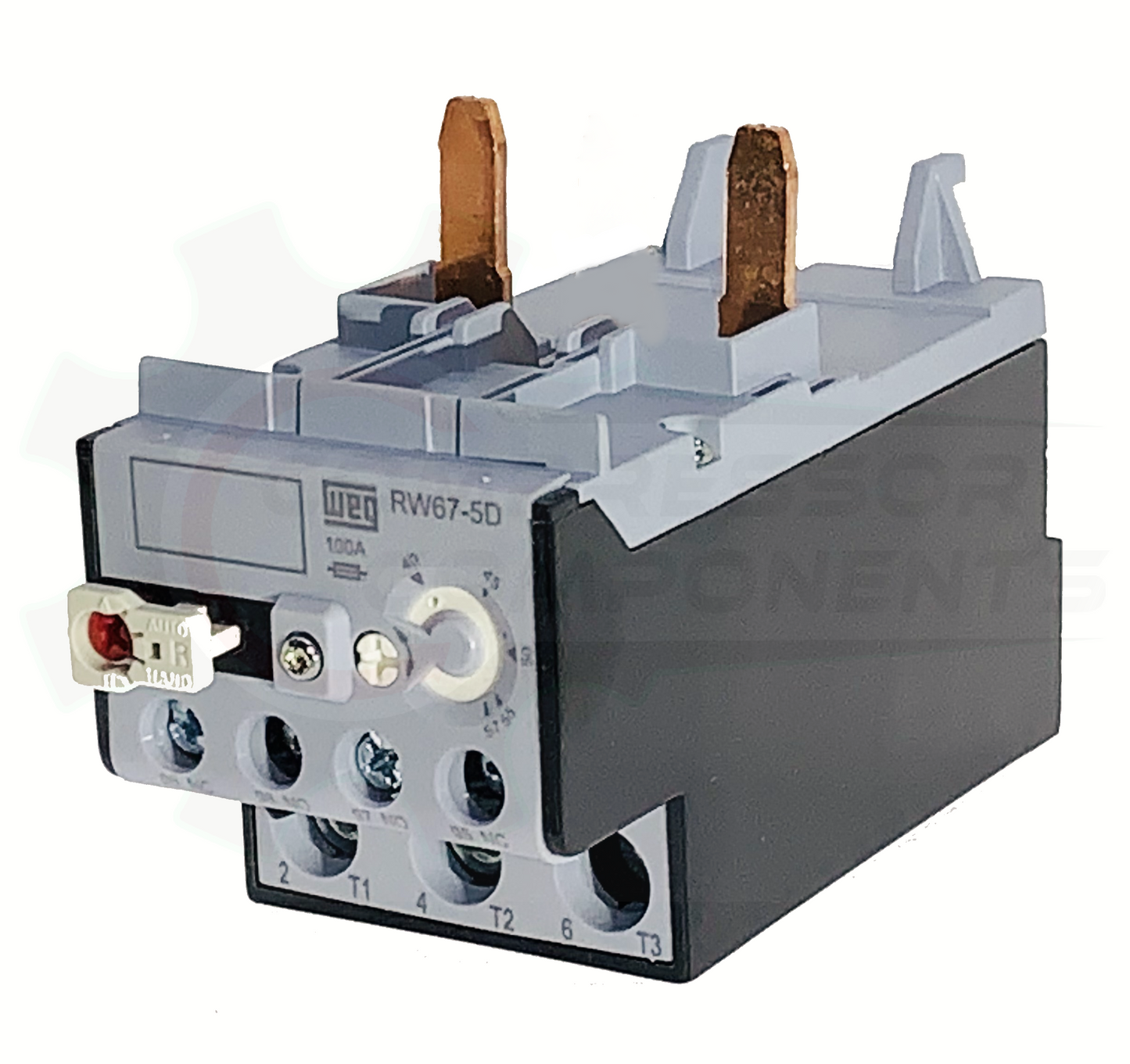

WEG RW67-5D2-U057 thermal overload relay with an adjustable 40-57A range for single-phase motor protection. This 2-pole overload mounts directly to the WEG CWB40-CWB80 contactor platform.
Technical Specifications
| Manufacturer | WEG |
|---|---|
| Part number | RW67-5D2-U057 |
| Overload range | 40-57A |
| Poles | 2 |
Application: Single-phase motor overload protection
Compatible contactor platform: WEG CWB40-CWB80
Compatible Contactors We Carry
- WEG CWB40-11-30C03 - 40A, 24 VDC
- WEG CWB40-11-30D02 - 40A, 24 VAC
- WEG CWB40-11-30D15 - 40A, 120 VAC
- WEG CWB40-11-30V24 - 40A, 208-240 VAC
- WEG CWB40-11-30D39 - 40A, 480 VAC
- WEG CWB50-11-30D02 - 50A, 24 VAC
- WEG CWB50-11-30D15 - 50A, 120 VAC
- WEG CWB50-11-30V24 - 50A, 208-240 VAC
- WEG CWB50-11-30D39 - 50A, 480 VAC
- WEG CWB80-11-30D02 - 80A, 24 VAC
- WEG CWB80-11-30D15 - 80A, 120 VAC
- WEG CWB80-11-30V24 - 80A, 208-240 VAC
- WEG CWB80-11-30D39 - 80A, 480 VAC
How to Select the Overload
Select the overload relay from the motor nameplate full-load amps and the requirements of the starter/application. Do not select an overload solely from motor horsepower.
Need Help Confirming the Correct Overload?
Send Compressor Components a photo of the existing overload or the motor nameplate data, along with the starter/contactor number if available. We can help confirm the correct overload before you order.
