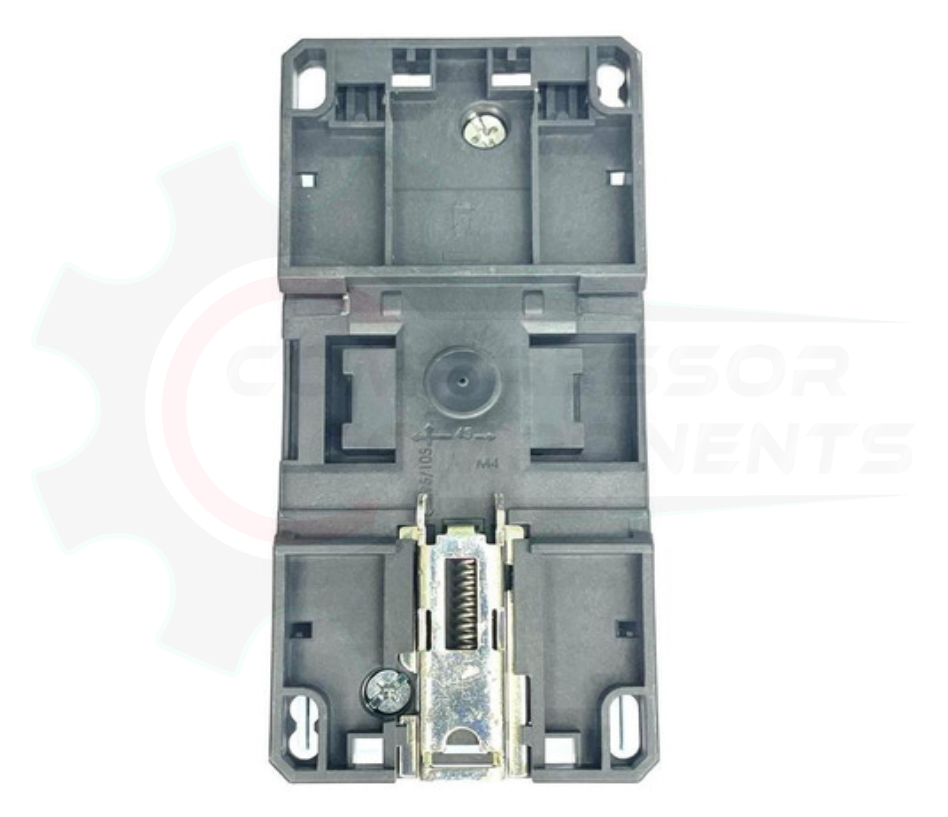

WEG CWB80-11-30V24 80A 3-Pole Contactor – 208-240 VAC Coil, 1NO/1NC
WEG CWB80-11-30V24 80A 3-Pole Contactor – 208-240 VAC Coil, 1NO/1NC
Couldn't load pickup availability
View full details
Product Description
WEG CWB80-11-30V24 IEC contactor with an 80A AC-3 rating and 208-240 VAC coil. This 3-pole contactor includes 1 normally open + 1 normally closed auxiliary contact and screw terminals.
Technical Specifications
| Manufacturer | WEG |
|---|---|
| Part number | CWB80-11-30V24 |
| Series | CWB |
| Rated current | 80A AC-3 |
| Main poles | 3 normally open |
| Built-in auxiliary contacts | 1 NO + 1 NC |
| Coil | 208-240 VAC |
| Terminal type | Screw |
Replacement Coil Information
The CWB80 uses the larger CWB40-CWB80 coil platform. We do not currently have a separate replacement-coil listing for this control voltage, so no replacement coil is linked here. Contact Compressor Components with the contactor model and control voltage if you need the coil by itself.
Compatible 3-Pole Overload Relays We Carry
These WEG RW67-5D3 overload relays are the CWB-family overload platform for this contactor size. Select the overload range from the motor nameplate full-load amps.
- RW67-5D3-U040 - 25-40A
- RW67-5D3-U050 - 32-50A
- RW67-5D3-U057 - 40-57A
- RW67-5D3-U063 - 50-63A
- RW67-5D3-U070 - 57-70A
- RW67-5D3-U080 - 63-80A
Compatible Auxiliary Contact
Starter Assembly Using This Contactor
Selection Note
The V24 suffix identifies this complete contactor as the 208-240 VAC coil version. When replacing the complete contactor, match the required control voltage as well as the contactor frame and motor load.
Need help confirming the correct contactor, coil or overload? Send Compressor Components the motor nameplate data and control voltage and we can help verify the selection before you order.
