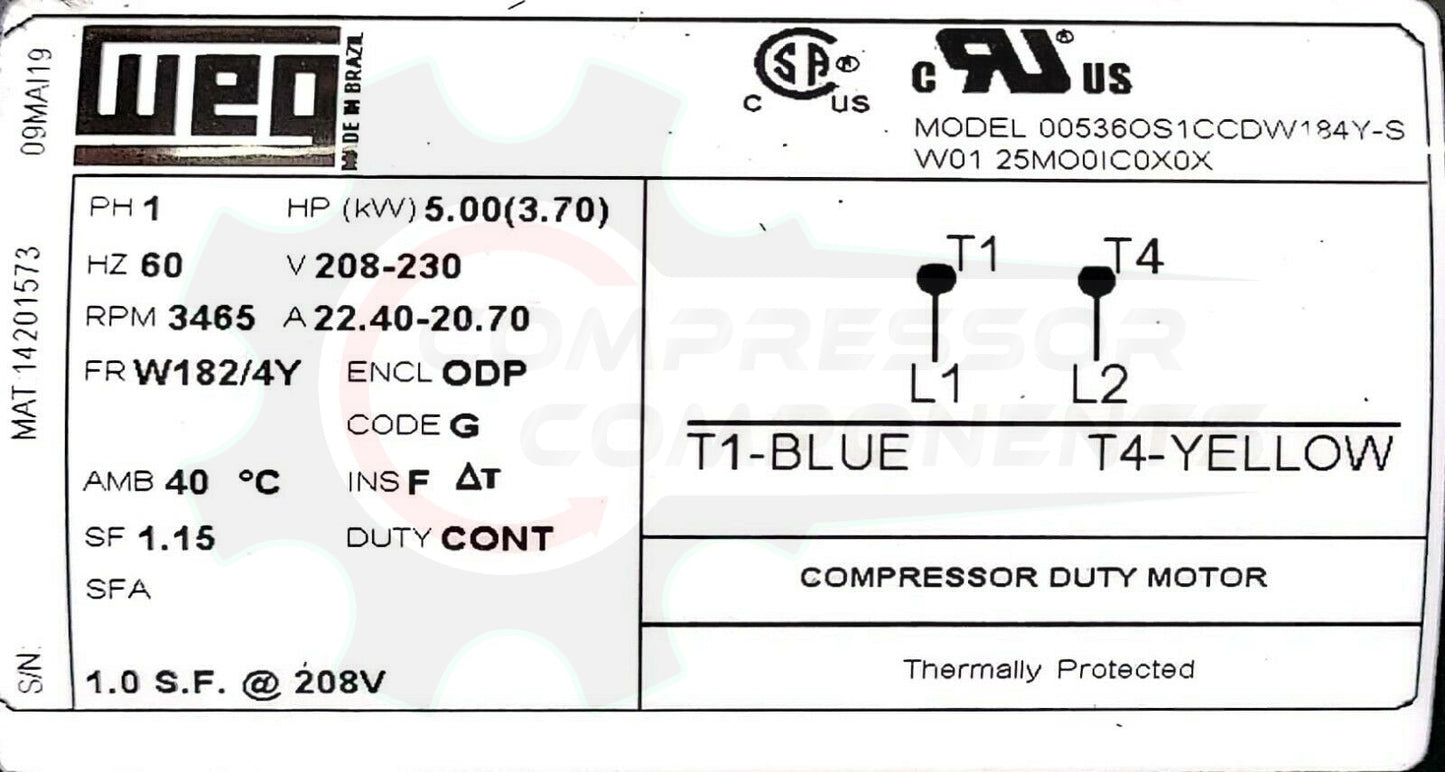

WEG 00536OS1CCDW184Y-S / 5 HP 182/4Y FRAME 208-230 VOLT NON REVERSIBLE CCW

WEG Single Phase / 3600 RPM Class / Compressor Motor

BRAND : WEG
HP : 5
FRAME : 182/4Y
RPM : 3450
SHAFT DIAMETER : 7/8
ROTATION SHAFT END : CCW
FLA FULL LOAD AMP : 22.4-20.7
VOLTAGE : 208-230
SERVICE FACTOR : 1.15 (1.00@208V)
WEIGHT : 53.7

Replaces:
Ingersoll-Rand: 22469552
Ingersoll-Rand: 23378805
Ingersoll-Rand: 47669474001
Ingersoll-Rand: 54421193
Ingersoll-Rand: 23220064
