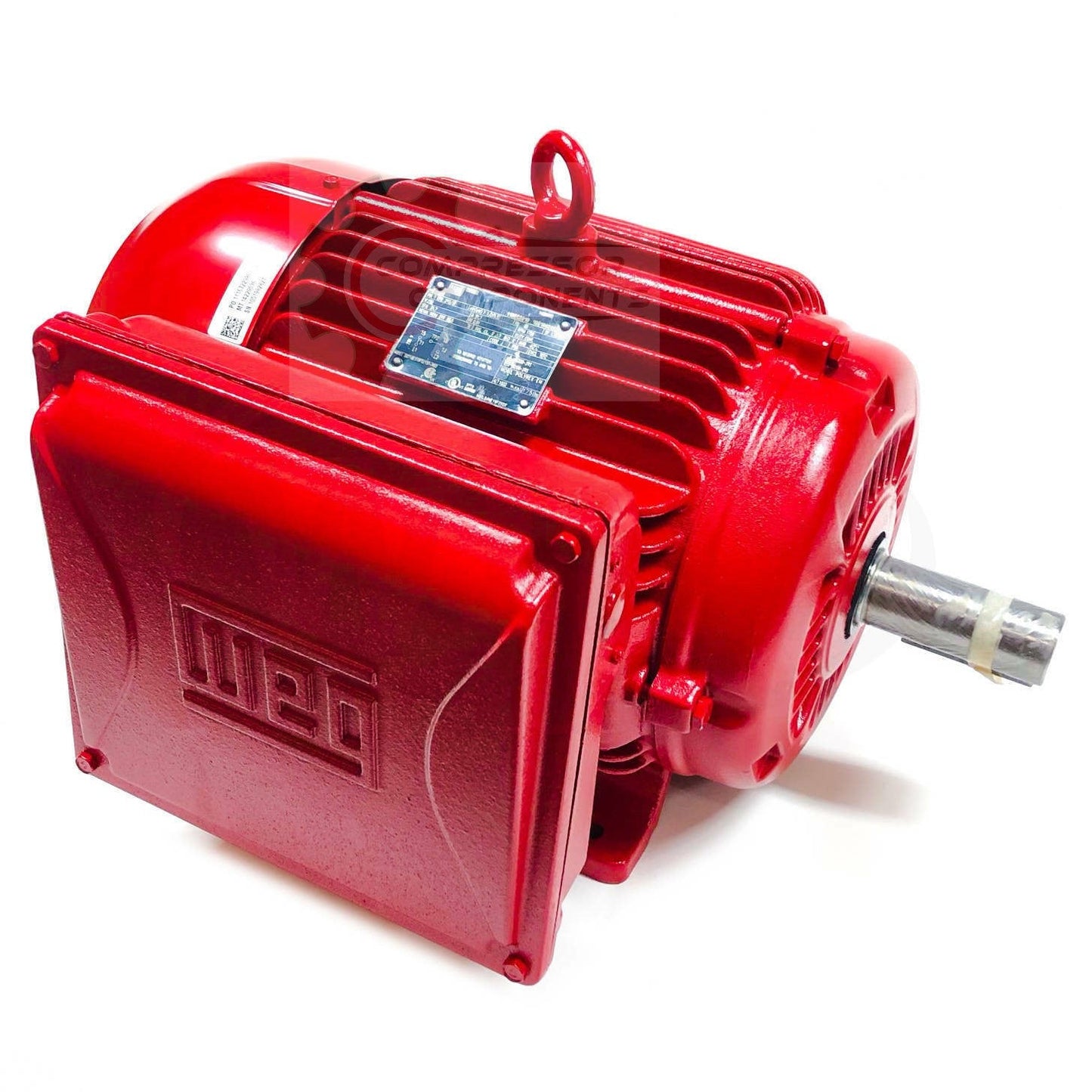

WEG 00518ES1C184T-W22 5 HP 184T 208-230V Single-Phase TEFC Motor
WEG 00518ES1C184T-W22 5 HP 184T 208-230V Single-Phase TEFC Motor
Regular price
$1,565.95 USD
Regular price
Sale price
$1,565.95 USD
Unit price
per
Orders $25 or more ship free to the lower 48. Shipping details.
Condition :
New
Couldn't load pickup availability
View full details
Product Description
WEG 00518ES1C184T-W22 is a 5 HP single-phase W22 cast-iron TEFC motor for 1800 RPM-class industrial applications.
Specifications
| Horsepower | 5 HP |
|---|---|
| Phase | Single phase |
| Voltage | 208-230V |
| Frequency | 60 Hz |
| Frame | NEMA 184T |
| Rated speed | 1730 RPM |
| Full-load amps | 23.0A @ 208V / 21.4A @ 230V |
| Service factor | 1.15 at 230V / 1.00 at 208V |
| Enclosure | TEFC |
| Frame material | Cast iron |
| Shaft diameter | 1-1/8 in. |
| Rotation | Reversible CW/CCW |
| Approximate weight | 116 lb |
Application / Selection
Verify horsepower, voltage, frame and mounting dimensions, shaft size, RPM and rotation before ordering.
