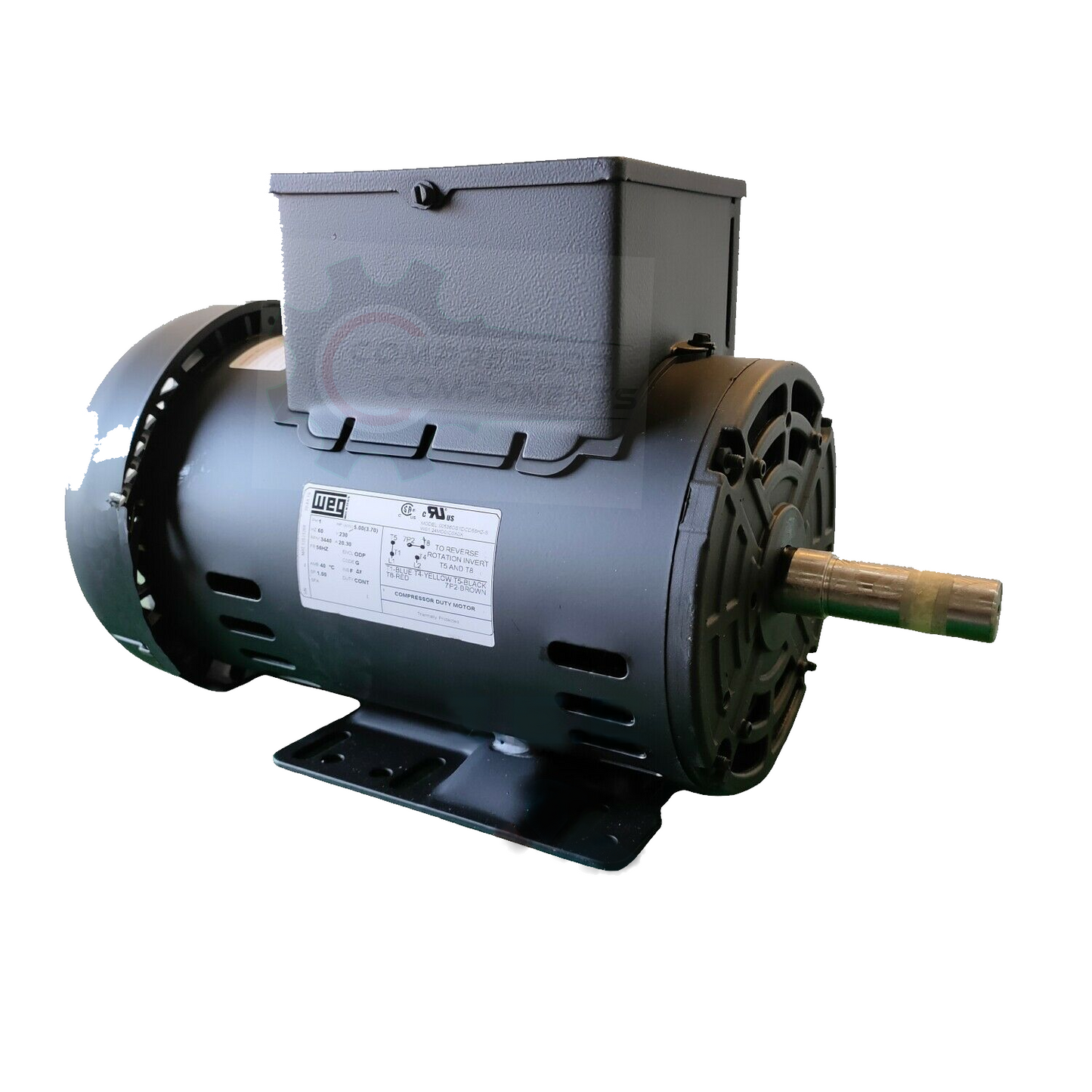

• WEG 00536OS1DCD56HZ-S 5 HP 56HZ compressor motor
  • WEG 00536OS1DCD56HZ-S 230V single-phase ODP motor view
  • WEG 00536OS1DCD56HZ-S 7/8-inch shaft motor detail
  • WEG 00536OS1DCD56HZ-S reversible compressor motor
  • WEG 00536OS1DCD56HZ-S 56HZ-frame motor view
  • WEG 00536OS1DCD56HZ-S motor product image
1 7

WEG 00536OS1DCD56HZ-S 5 HP 56HZ Frame 230V Single-Phase ODP Compressor Motor

WEG 00536OS1DCD56HZ-S 5 HP 56HZ Frame 230V Single-Phase ODP Compressor Motor

$692.95 USD
$692.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New
Tell a friend
View full details

Product Description

WEG 00536OS1DCD56HZ-S is a 5 HP single-phase compressor-duty motor for air compressor applications requiring a 56HZ-frame, high-speed ODP motor.

Specifications

  • Horsepower: 5 HP
  • Phase: Single phase
  • Voltage: 230V
  • Frequency: 60 Hz
  • Frame: NEMA 56HZ
  • Poles: 2
  • Rated speed: 3440 RPM
  • Synchronous speed: 3600 RPM
  • Full-load amps: 20.3A
  • Service factor: 1.00
  • Enclosure: ODP (Open Drip Proof)
  • Mounting: Foot mounted
  • Shaft diameter: 7/8 in.
  • Rotation: Reversible

Important Fitment Note

This motor is not a replacement for the Ingersoll Rand 56HZ motor/application. A matching 56HZ frame designation alone does not establish compatibility.

Application / Selection

Designed for compressor-duty service where the equipment requirements match this motor. Verify horsepower, voltage, frame, shaft dimensions, mounting, RPM and rotation before ordering. No exact compressor make/model fitment is claimed without documentation.
