Square D 8911DPSG32V09 5 HP 230V 1-Phase 30A Definite Purpose Motor Starter
Square D 8911DPSG32V09 5 HP 230V 1-Phase 30A Definite Purpose Motor Starter
Couldn't load pickup availability
View full details
Product Description

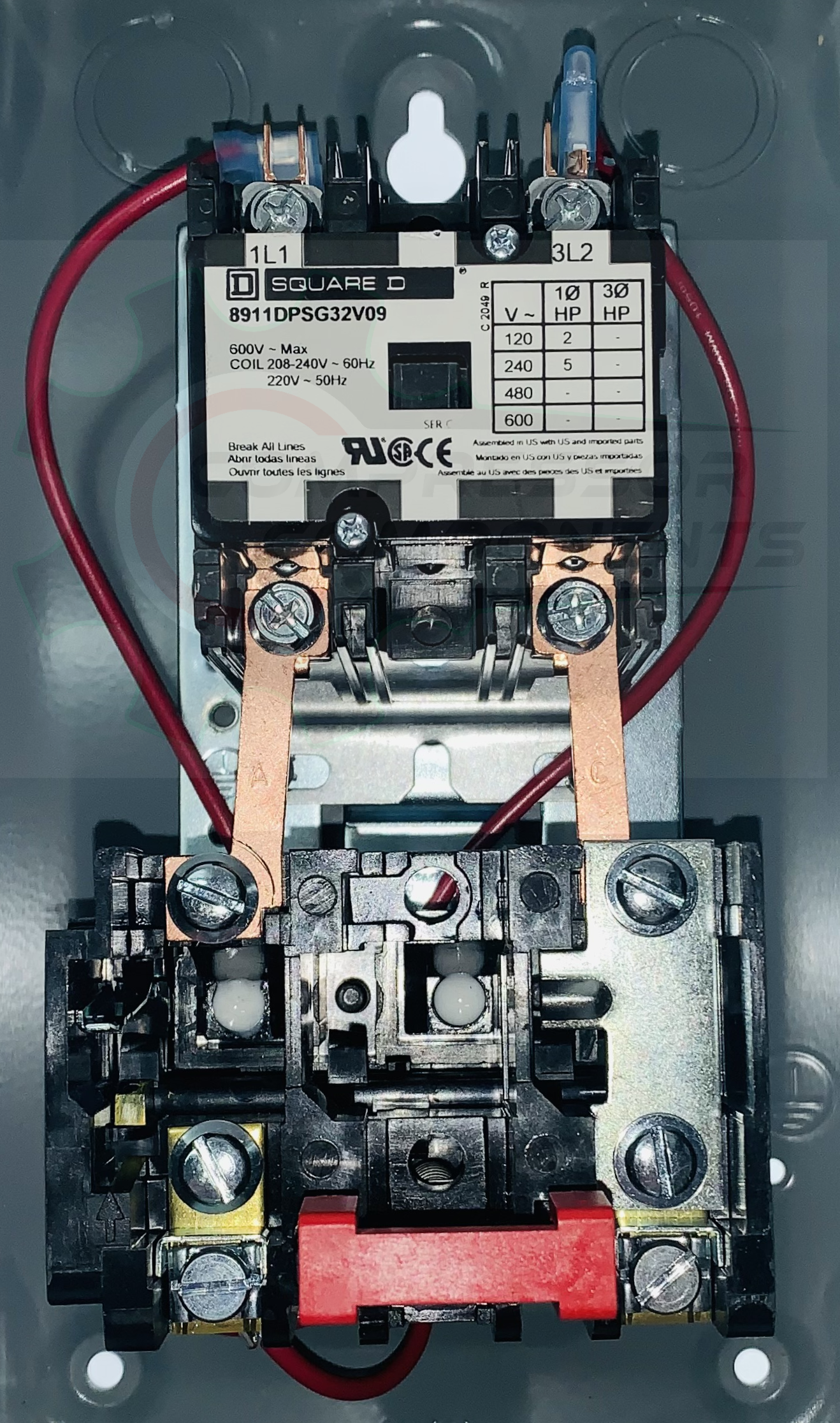

Square D / Schneider Electric 8911DPSG32V09 Definite Purpose Magnetic Motor Starter
Designed for single-phase motor loads including air compressors, pumps and other definite-purpose applications. This enclosed Class 8911 DPS starter combines a 30A, 2-pole contactor with a melting-alloy overload block and a 208–240V AC control coil.
Specifications
| Manufacturer | Square D / Schneider Electric |
|---|---|
| Part Number | 8911DPSG32V09 |
| Starter Type | Definite-purpose, non-reversing |
| Phase | Single phase |
| Contactor Rating | 30A |
| Poles | 2 |
| Motor Rating | 5 HP at 230V AC single phase; 2 HP at 115V AC single phase |
| Coil / Control Voltage | 208–240V AC, 60 Hz (220V AC, 50 Hz) |
| Enclosure | NEMA Type 1 |
| Overload Type | Melting-alloy thermal overload; one thermal unit required and sold separately |
| Maximum System Voltage | 600V AC |
| GTIN / UPC | 785901024699 |
Compressor Applications

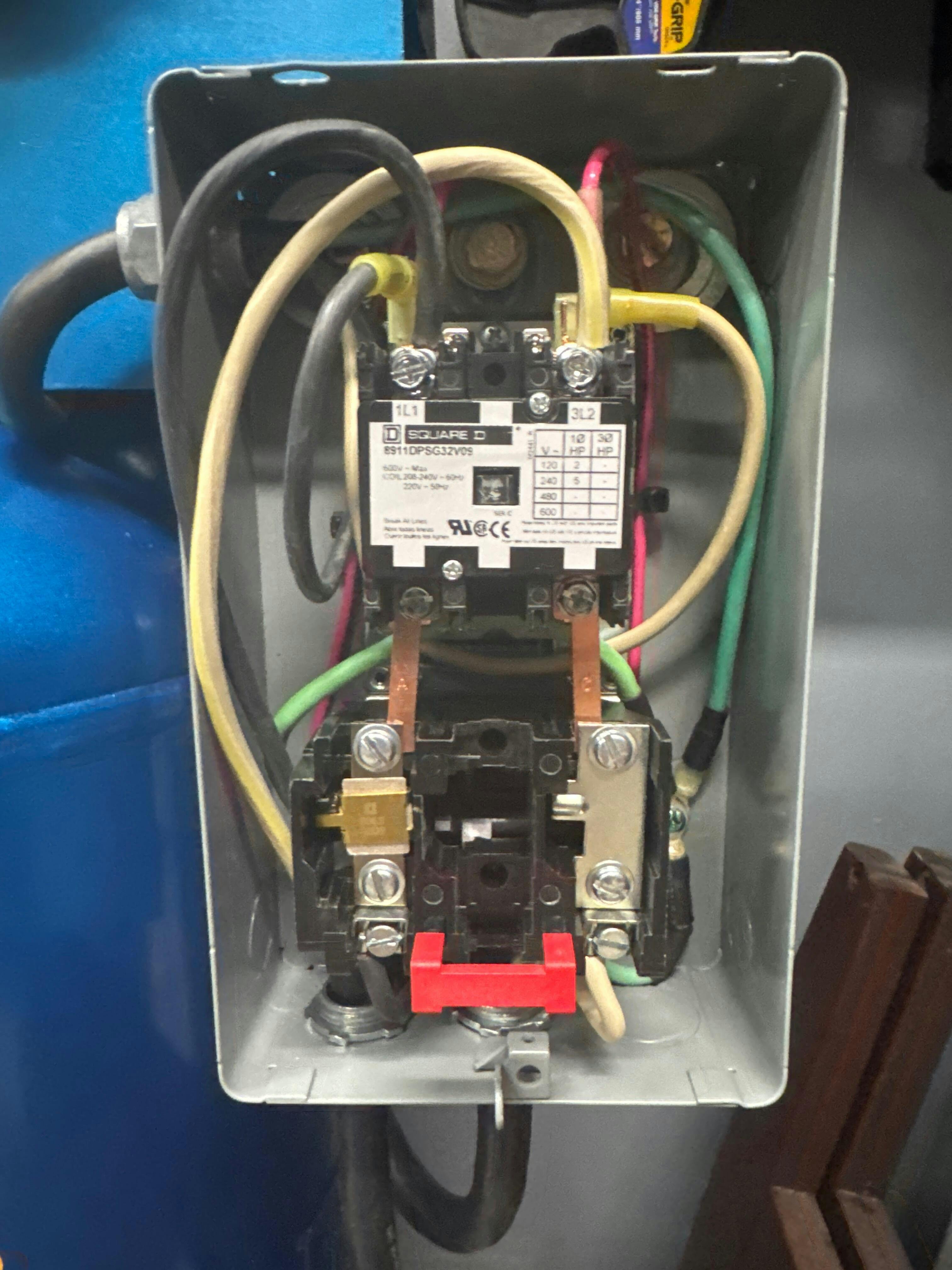

Schneider Electric specifically lists air compressors as an intended application for the 8911 DPS family. The 8911DPSG32V09 is used as a replacement starter on 5 HP, 230V single-phase compressor packages, including Champion VR5-8 applications. Verify motor voltage, phase and nameplate FLA before ordering.
Overload Heater Selection
This 30A DPSG starter uses Square D B-series thermal units. Heater selection must be based on the motor's actual nameplate full-load current (FLA), not horsepower alone.
Recommended Heater Inserts
B-45 — 25.9–28.6A
B-40 — 23.3–25.8A
