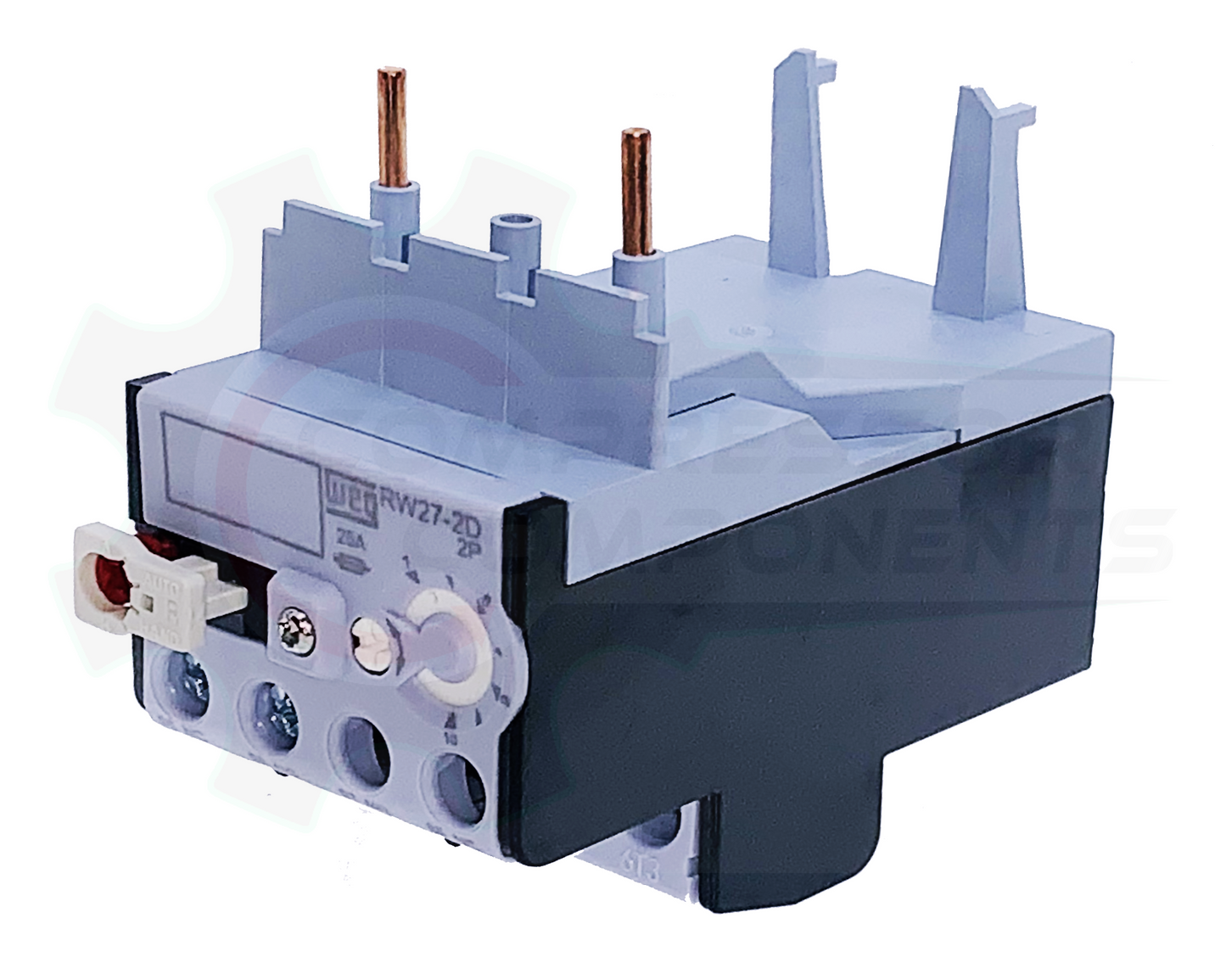

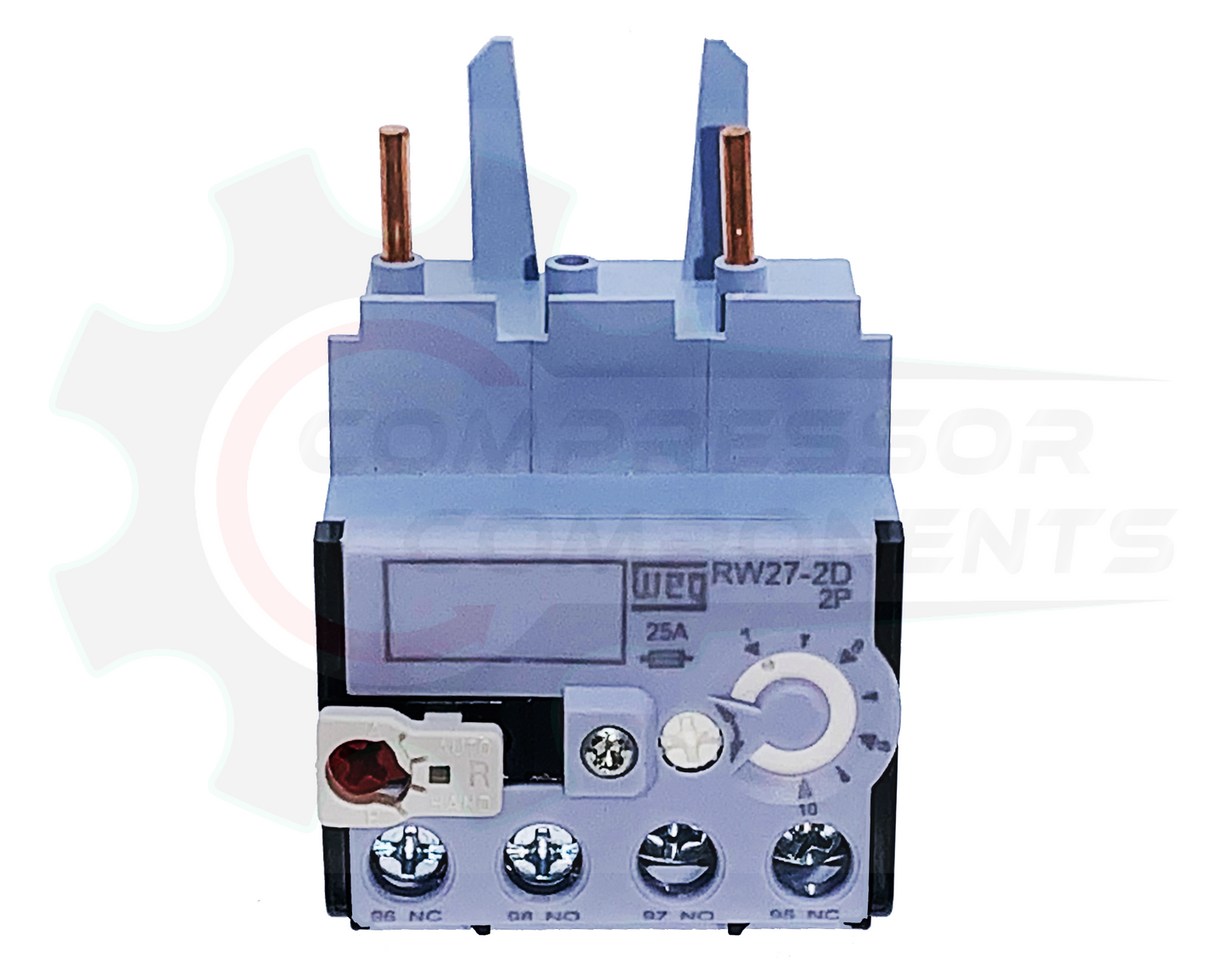

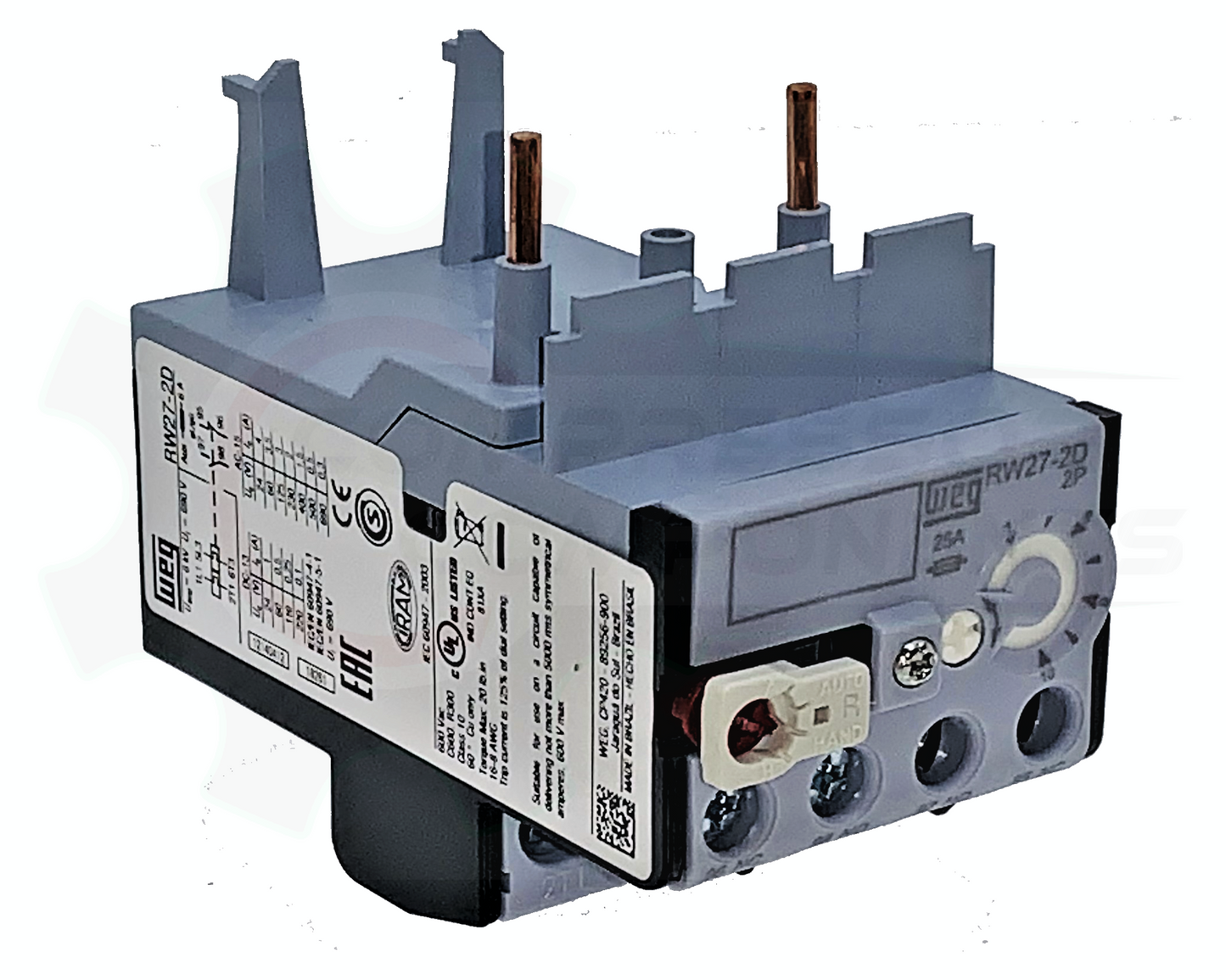

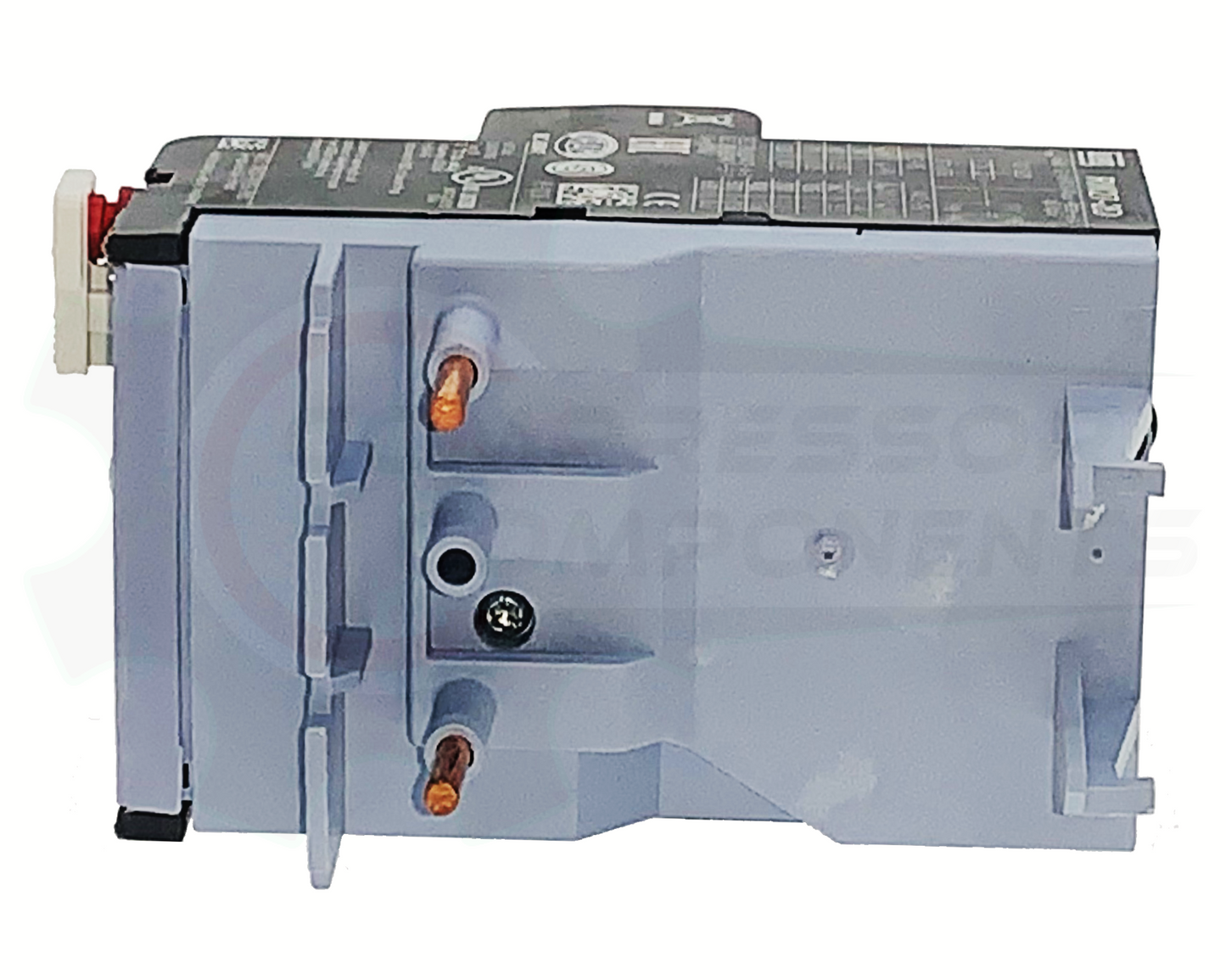

WEG RW27-2D2-U010 7-10A 2-Pole Thermal Overload Relay for CWB Contactors

WEG RW27-2D2-U010 thermal overload relay with an adjustable 7-10A range for single-phase motor protection. This 2-pole overload is designed for the WEG CWB9-CWB38 contactor platform.

Technical Specifications

Application: Single-phase motor overload protection

Compatible contactor platform: WEG CWB9-CWB38

Compatible Contactors We Carry

WEG specifies the RW27-2D2-U010 for direct mounting on the CWB9-CWB38 contactor platform. The following compatible contactors are currently available from Compressor Components:

• WEG CWB12-11-30D02 - 12A, 24 VAC
• WEG CWB12-11-30D15 - 12A, 120 VAC
• WEG CWB12-11-30V24 - 12A, 208-240 VAC
• WEG CWB25-11-30C03 - 25A, 24 VDC
• WEG CWB25-11-30D02 - 25A, 24 VAC
• WEG CWB25-11-30D15 - 25A, 120 VAC
• WEG CWB25-11-30V24 - 25A, 208-240 VAC

How to Select the Overload

Select the overload relay from the motor nameplate full-load amps and the requirements of the starter/application. Do not select an overload solely from motor horsepower.

Need Help Confirming the Correct Overload?

Send Compressor Components a photo of the existing overload or the motor nameplate data, along with the starter/contact number if available. We can help confirm the correct pole configuration and amp range before you order.
