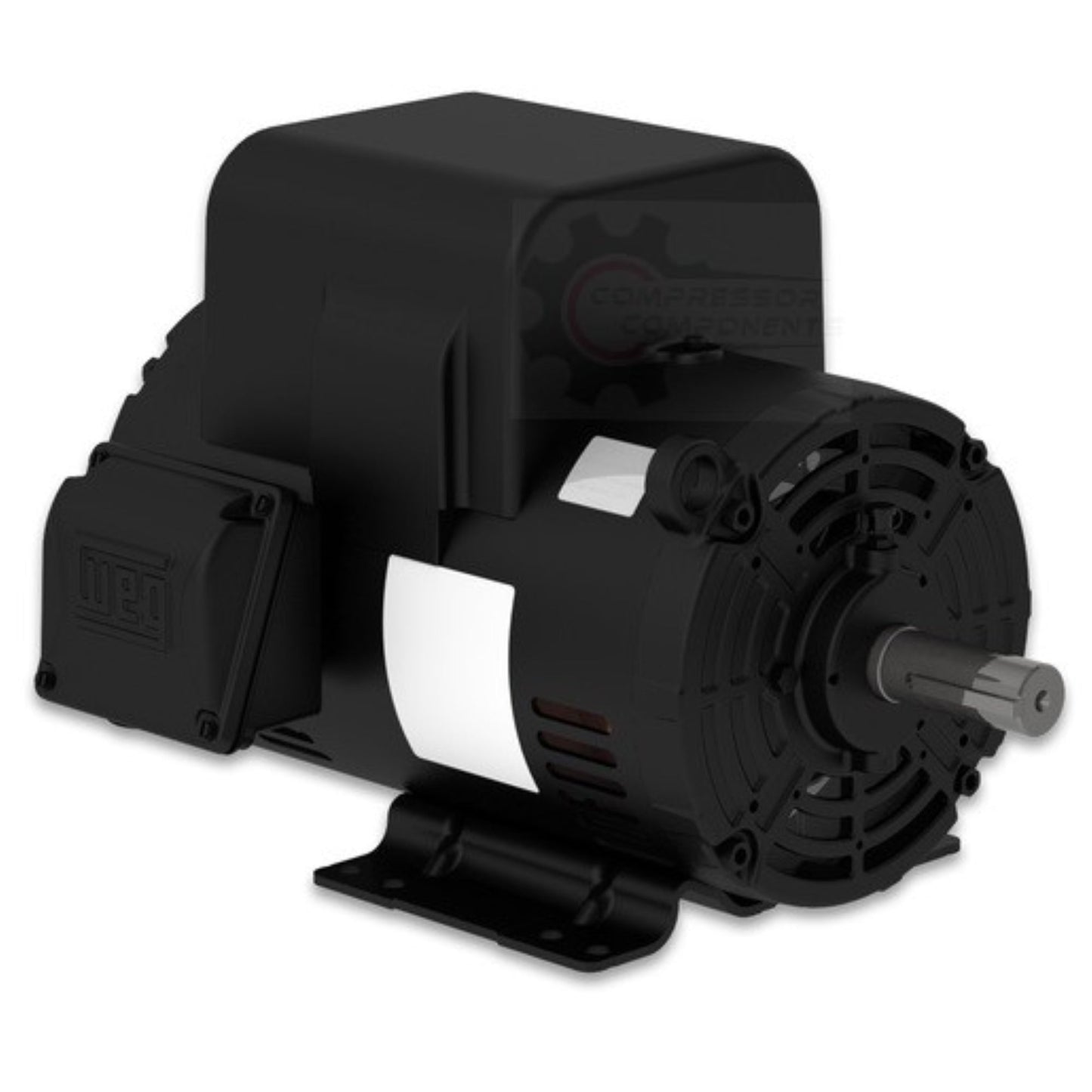

WEG 00736OS1C184T-S 7.5 HP 184T Frame 208-230V Single-Phase ODP Compressor Motor

WEG 00736OS1C184T-S is a 7.5 HP single-phase compressor-duty motor for air compressor applications requiring a 184T-frame, high-speed ODP motor.

Specifications

• Horsepower: 7.5 HP
• Phase: Single phase
• Voltage: 208-230V
• Frame: NEMA 184T
• Rated speed: 3510 RPM
• Full-load amps: 33.4A at 208V / 29.6A at 230V
• Service factor: 1.25 at 230V / 1.00 at 208V
• Enclosure: ODP (Open Drip Proof)
• Shaft diameter: 1-1/8 in.
• Rotation: Reversible

Application / Selection

Designed for compressor-duty service where the equipment requires a 7.5 HP, 184T-frame, 208-230V single-phase motor. No exact compressor make/model fitment is claimed without documentation. Verify horsepower, voltage, frame and mounting dimensions, shaft size, RPM and rotation before ordering.
