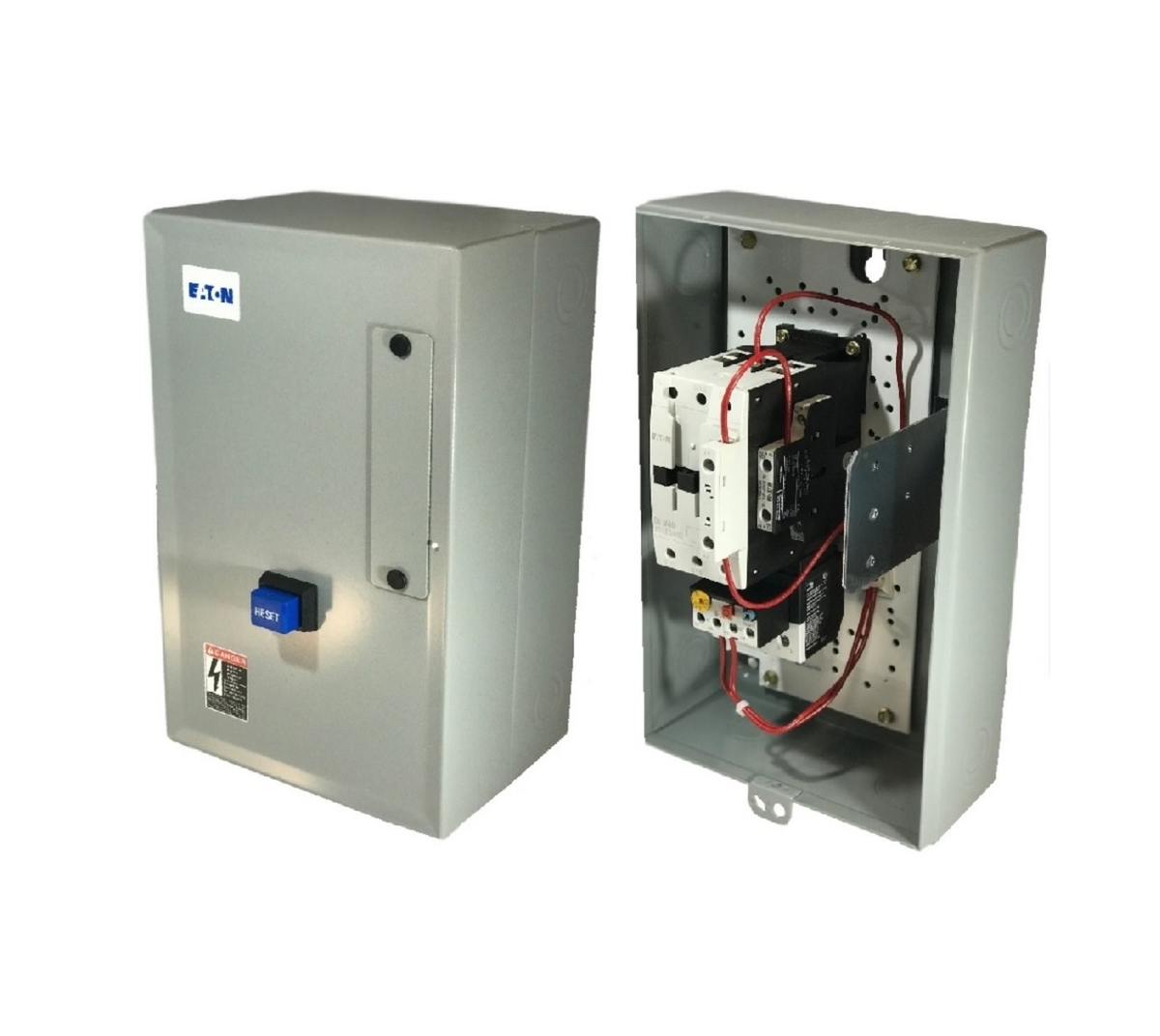

Eaton ECX09G1BAA-M IEC Magnetic Motor Starter
Eaton XT IEC non-combination, non-reversing enclosed motor starter for 7.5 HP, 230V three-phase motor applications. Uses a 25A contactor with adjustable 16-24A bimetallic overload protection.
Specifications
| Manufacturer | Eaton |
|---|---|
| Catalog Number | ECX09G1BAA-M |
| UPC | 786685237701 |
| Motor Rating | 7.5 HP at 230V, 3 Phase |
| Contactor Rating | 25A |
| Control Coil | 240V AC |
| Overload Range | 16-24A adjustable |
| Overload Relay | XTOB 16-24 FLA |
| Starter Type | Non-combination, non-reversing IEC starter |
| Enclosure | NEMA Type 1 / IP23 |
| Approvals | UL Listed, cUL Listed |
Selection note: Select and set overload protection from the motor's actual nameplate full-load amperage. Do not select a starter by horsepower alone.
