Gas Air Compressor Throttle Control Cable – Eyelet, 1″ Stroke

Gas Air Compressor Throttle Control Cable – Eyelet, 1″ Stroke

Regular price $52.95 USD
Regular price Sale price $52.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New

View full details

Product Description

Conrader TCLP eyelet-end throttle control cable for gas-engine air compressors. This large cable-style bullwhip has a 1/8" MNPT rear signal inlet, 1-inch stroke and 16.89 lbf retracted spring force. Select the cable length and eyelet attachment that match the existing assembly.

Verified replacement references — select 36 inches

Select SKU OEM / alternate reference Catalog reference
TCLP-36-E
36-inch eyelet
Verified: Campbell Hausfeld / Speedaire CV006411AV; legacy alternate CV006411SJ Grainger item 33MH85

These references apply to the 36-inch eyelet configuration only. Our legacy listing specifies a 36-inch whip with eyelet, 1-inch stroke and approximately 17 lbf spring force. Grainger identifies 33MH85 as its catalog item number for CV006411AV.

Machine-specific parts reference: the Speedaire 13H30 / 4LW38A repair-parts list identifies throttle control CV006411AV at item 15 and unloader ST128408AV at item 12. Use the machine's model and serial-specific parts list to confirm the full arrangement and pilot pressure setting before replacing the control system.

Manufacturer reference: Conrader TCLP family, eyelet-end configuration. Supplier SKUs use the length before the E suffix, such as TCLP-36-E.

Specifications

Specification Detail
Application group Gas-engine compressors; supplier group: 8–13 HP
Cable end Eyelet
Pneumatic signal inlet 1/8" MNPT, rear
Stroke 1.00 inch
Retracted spring force 16.89 lbf, approximately 17 lbf
Minimum actuation pressure 80 PSI
Maximum operating pressure 500 PSI
Operating temperature −15°F to 400°F
Construction Brass body; Viton seals; stainless-steel springs and cable

Available cable lengths

Variant SKU Supplier length
TCLP-12-E 12 inches
TCLP-18-E 18 inches
TCLP-24-E 24 inches
TCLP-36-E 36 inches
TCLP-48-E 48 inches
TCLP-60-E 60 inches

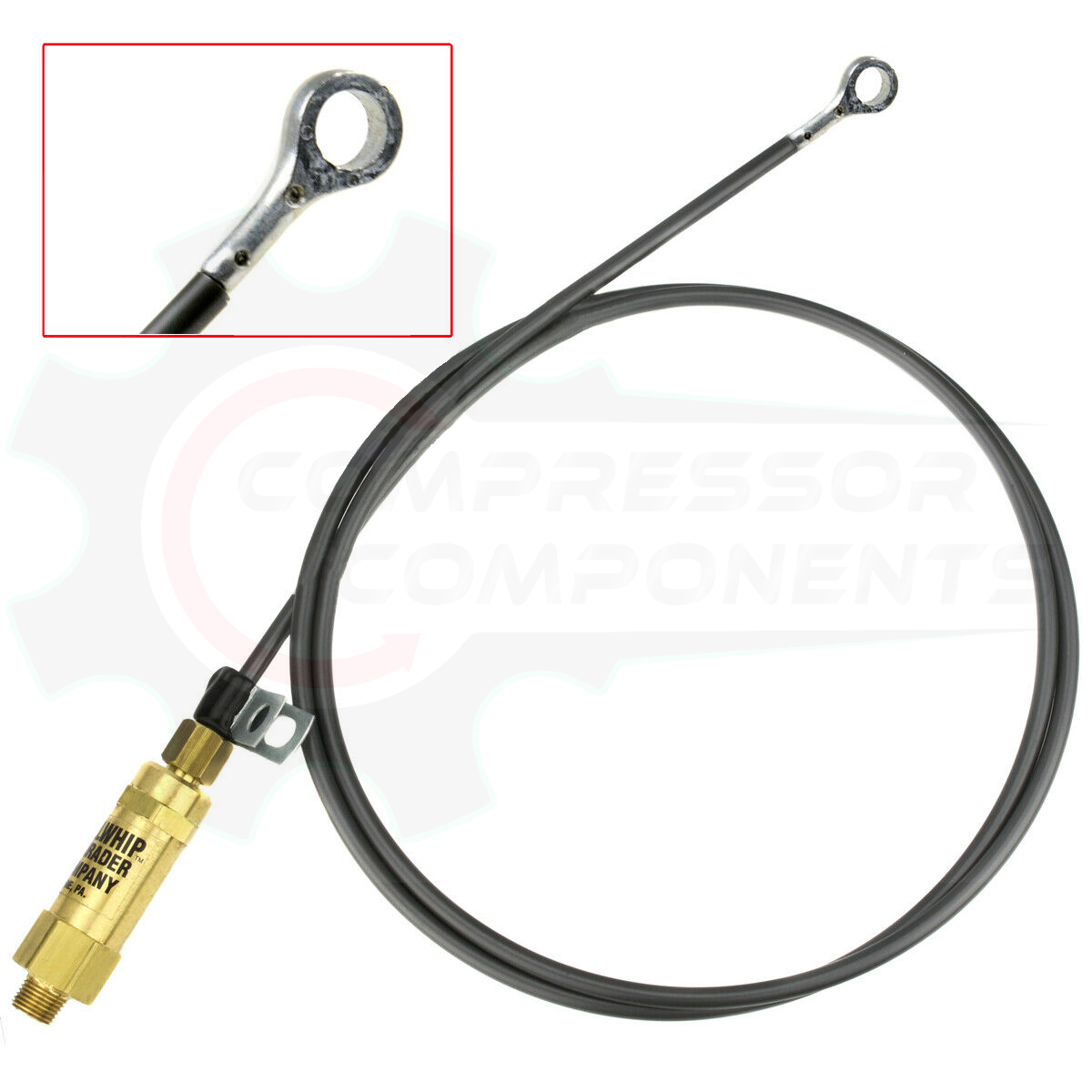

Representative image: The photo shows the eyelet-end configuration and is shared across lengths. Select TCLP-24-E for a supplied cable length of 24 inches. The CV006411AV / CV006411SJ / 33MH85 references apply only to TCLP-36-E.

Operation and selection

The pilot/unloader supplies a pneumatic signal at unload pressure, extending the actuator to reduce engine speed through the throttle linkage. Support and protect the cable with suitable routing clamps. Match length, eyelet attachment, stroke, spring force, signal connection and operating pressure; horsepower alone does not establish fitment.

Select the pilot/unloader configuration and load/unload pressure setting required by the machine. These TCLP controls have a 1-inch stroke and 16.89 lbf spring force; confirm both when choosing a replacement.

Z-bend alternative: Conrader TCLP Z-bend throttle cables. Match the throttle-arm attachment; references on the Z-bend listing do not automatically apply to eyelet controls.

Documentation: Conrader TCLP specifications · Conrader catalog · Speedaire 13H30 / 4LW38A repair-parts manual.
