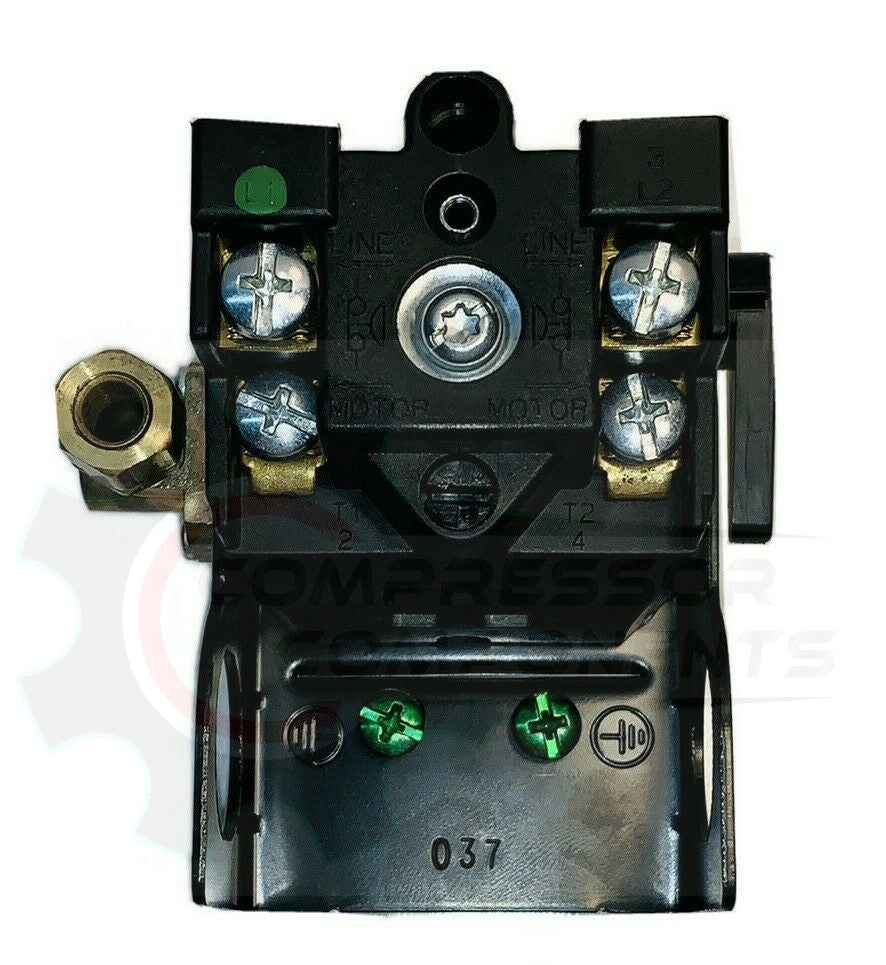

Hubbell 69JF8LY 1-Port Air Compressor Pressure Switch - 115/150 PSI

Hubbell 69JF8LY is a single-port 115/150 PSI air-compressor pressure switch with Auto/Off lever and unloader. It is used as a replacement in Champion compressor applications under OEM part number P05875A.

Verified Replacement Part Numbers

• Champion P05875A
• Champion PO5875A — alternate catalog/search spelling seen for the same application reference.
• Hubbell HC69JF8LY — Hubbell catalog alias for 69JF8LY.

Specifications

• Part Number: 69JF8LY
• Series: Hubbell 69JF
• Factory Setting: 115 PSI cut-in / 150 PSI cut-out
• Adjustable Differential: 25–38 PSI
• Minimum Cut-In: 90 PSI
• Maximum Cut-Out: 165 PSI

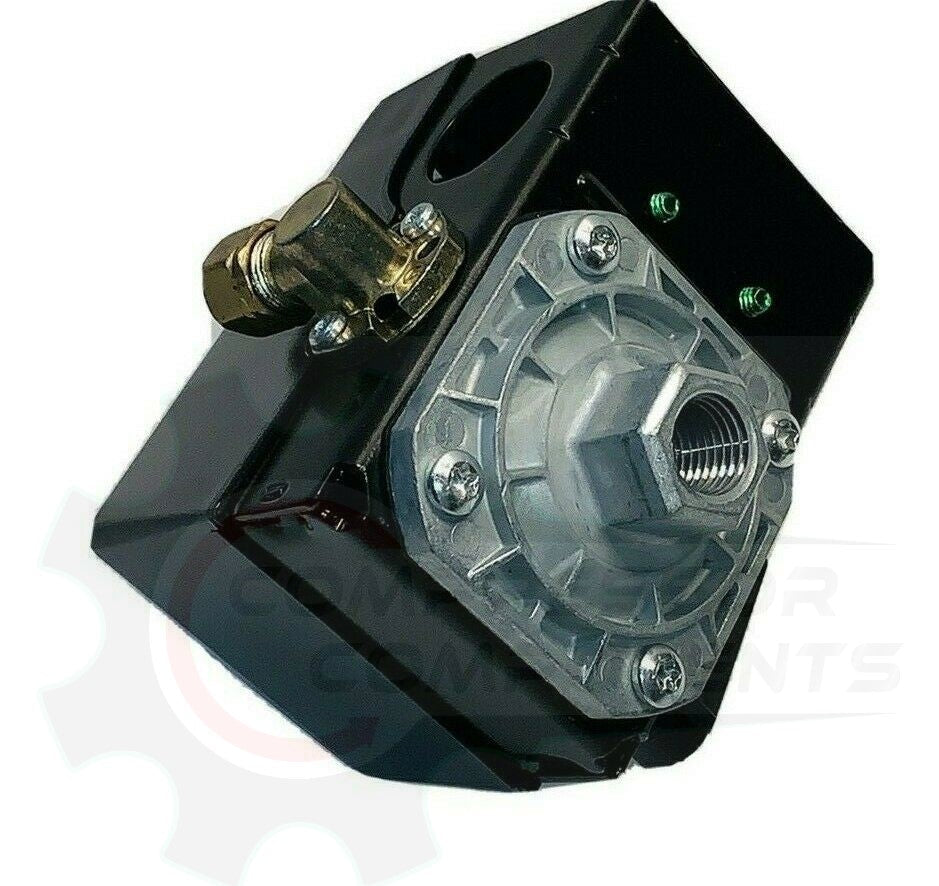

• Pressure Connection: 1/4" female NPT, single port
• Control: Auto/Off lever
• Unloader: Included, rotating configuration
• Motor Ratings: 1.5 HP at 120V 1-phase; 2 HP at 240V 1-phase; 3 HP at 240V 3-phase
• Enclosure: NEMA 1

Current Replacement

Hubbell 69JG8LY is the heavier-duty current replacement for 69JF8LY. It retains the same 115/150 PSI, single-port, Auto/Off lever and unloader configuration with higher electrical motor-load capacity.

Application / Selection

For Champion P05875A applications, verify the 115/150 PSI setting, single 1/4" pressure connection, unloader arrangement and motor electrical requirements before installation.

Connection specifications: One 1/4" female NPT pressure port; unloader connection: 1/4" compression.
