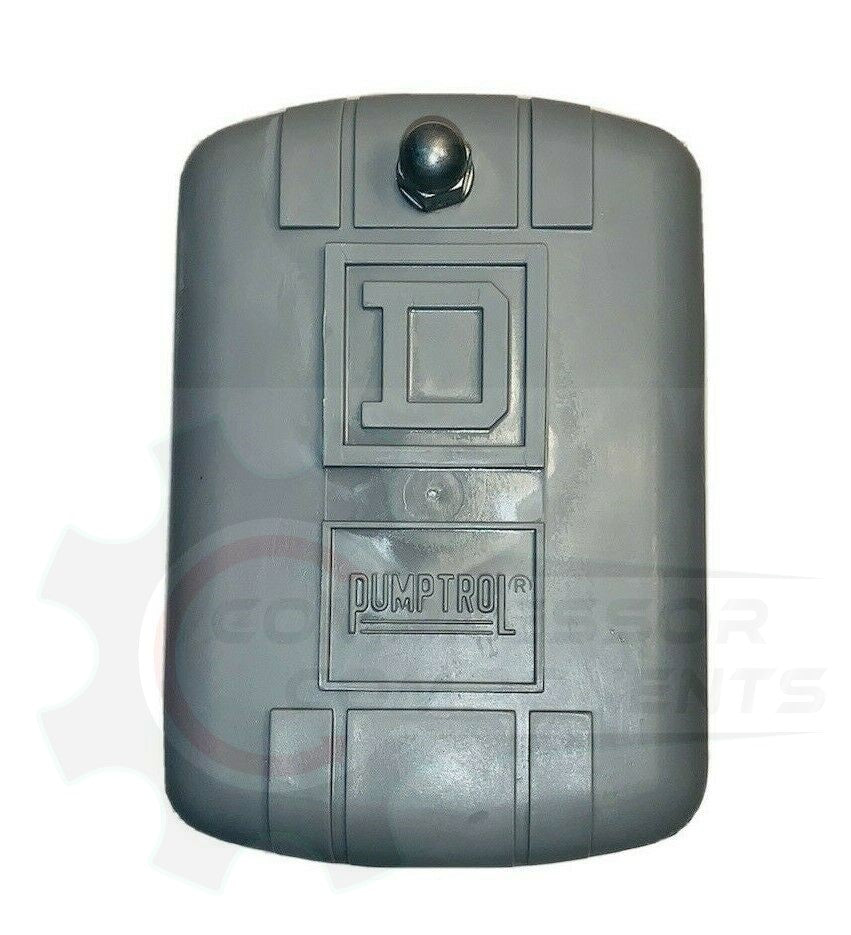

• Square D 9013FHG42J59 175 PSI cut-out pressure switch
  • 9013FHG42J59 single-port air compressor pressure switch
  • Square D 9013FHG42J59 pressure switch detail
  • 9013FHG42J59 Pumptrol pressure switch alternate view
1 5

Square D 9013FHG42J59 Pressure Switch - 175 PSI Cut-Out

Square D 9013FHG42J59 Pressure Switch - 175 PSI Cut-Out

$54.95 USD
$54.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New
Tell a friend
View full details

Product Description

Square D pressure switches are now Telemecanique Sensors, manufactured by Schneider Electric.

The 9013FHG42J59 is a single-port Pumptrol air-compressor pressure switch with a factory cut-out setting of 175 PSI and an approximately 35 PSI fixed differential.

Specifications

Part Number 9013FHG42J59
Series 9013FHG / Pumptrol
Factory Setting Off at 175 PSI
Adjustable Range on Rising Pressure 100–200 PSI
Approximate Fixed Differential 35 PSI
Maximum Allowable Pressure 220 PSI
Pressure Connection One 1/4" NPSF internal port
Contacts 2 NC, DPST-DB, snap action
Motor Rating 1.5 HP at 115V 1-phase; 2 HP at 230V 1-phase; 3 HP at 230V 3-phase
Enclosure NEMA 1

Application / Selection

Match the exact part number, 175 PSI cut-out requirement, pressure connection and electrical load before replacement.
