Lefoo CC9UL1 1-Port Air Compressor Pressure Switch - 140/175 PSI

Lefoo CC9UL1 1-Port Air Compressor Pressure Switch - 140/175 PSI

$31.95 USD
$31.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New
Tell a friend
View full details

Product Description

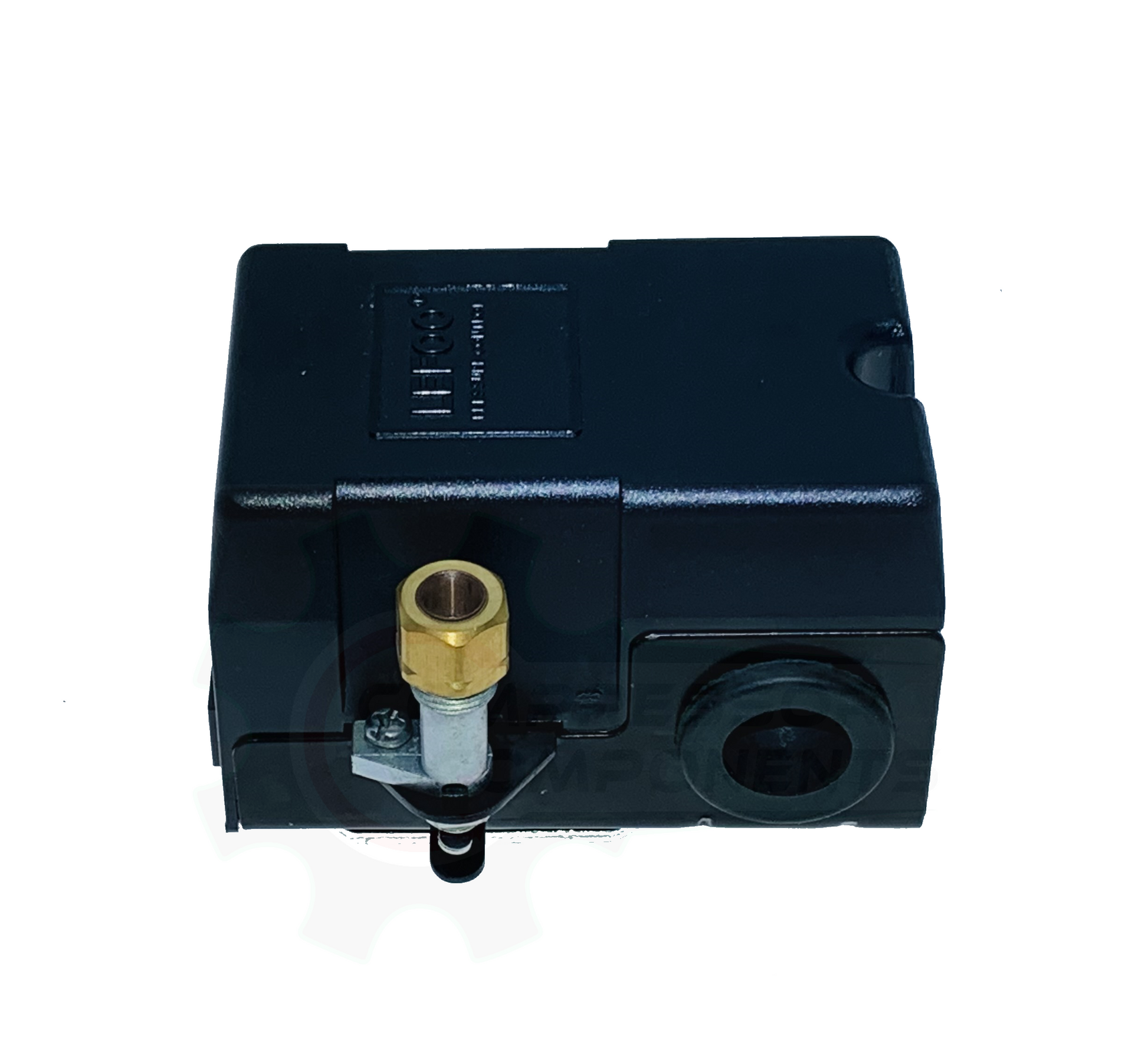

Lefoo CC9UL1 air compressor pressure switch with a single 1/4" FNPT tank connection, manual On/Off lever, and unloader valve. Factory pressure setting is 140 PSI cut-in / 175 PSI cut-out.

Specifications

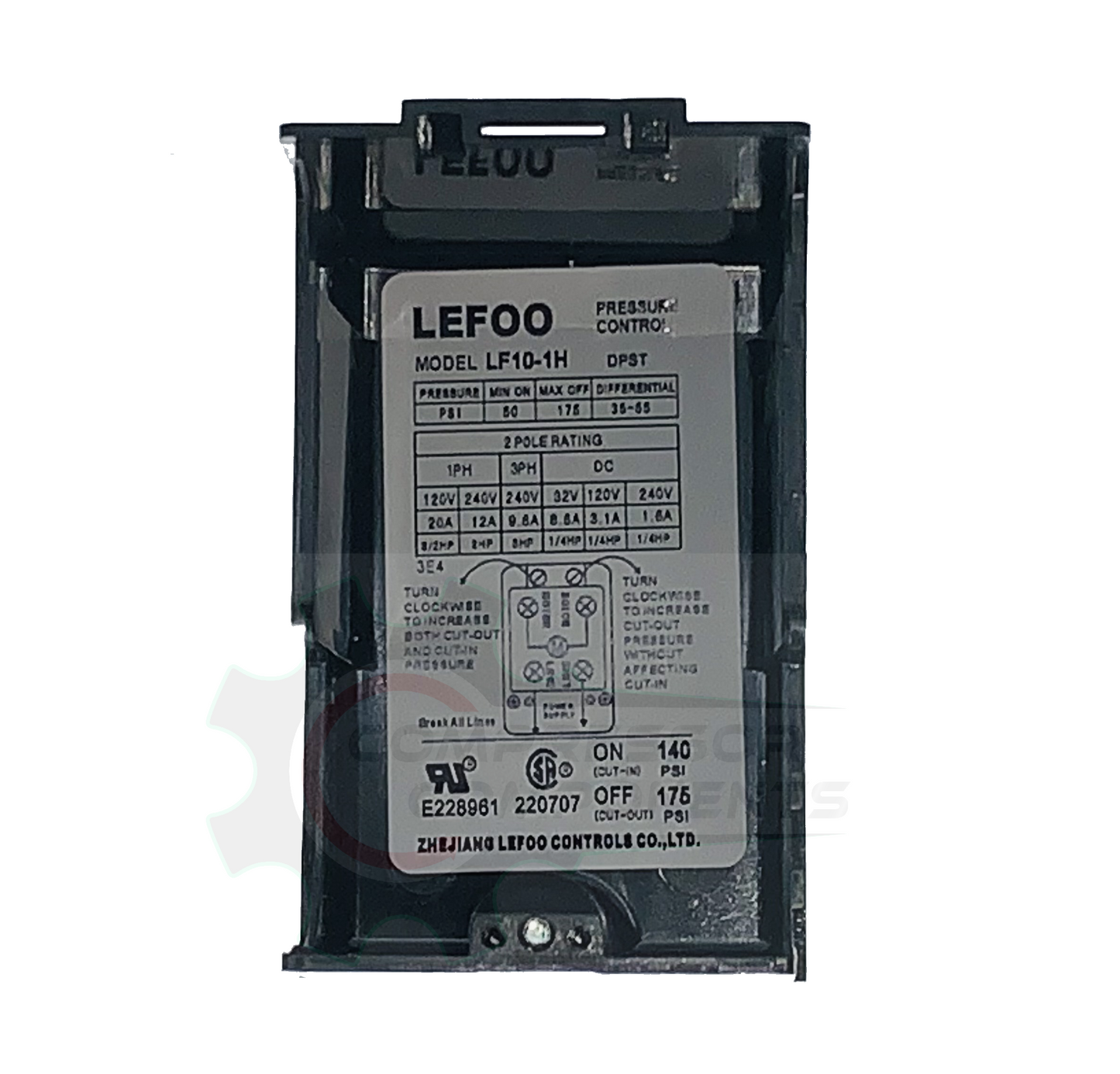

Factory setting 140 PSI cut-in / 175 PSI cut-out
Operating range 50–175 PSI
Differential 35–55 PSI
Pressure connection 1 port, 1/4" FNPT
Unloader connection 1/4" compression
Manual control On/Off lever
Electrical rating 20A at 120VAC / 12A at 240VAC

Verified Replacement / Cross References

✓ Hubbell / Furnas: 69MB9LY

Selection help: Match pressure setting, port configuration, unloader connection, and electrical load before ordering.
