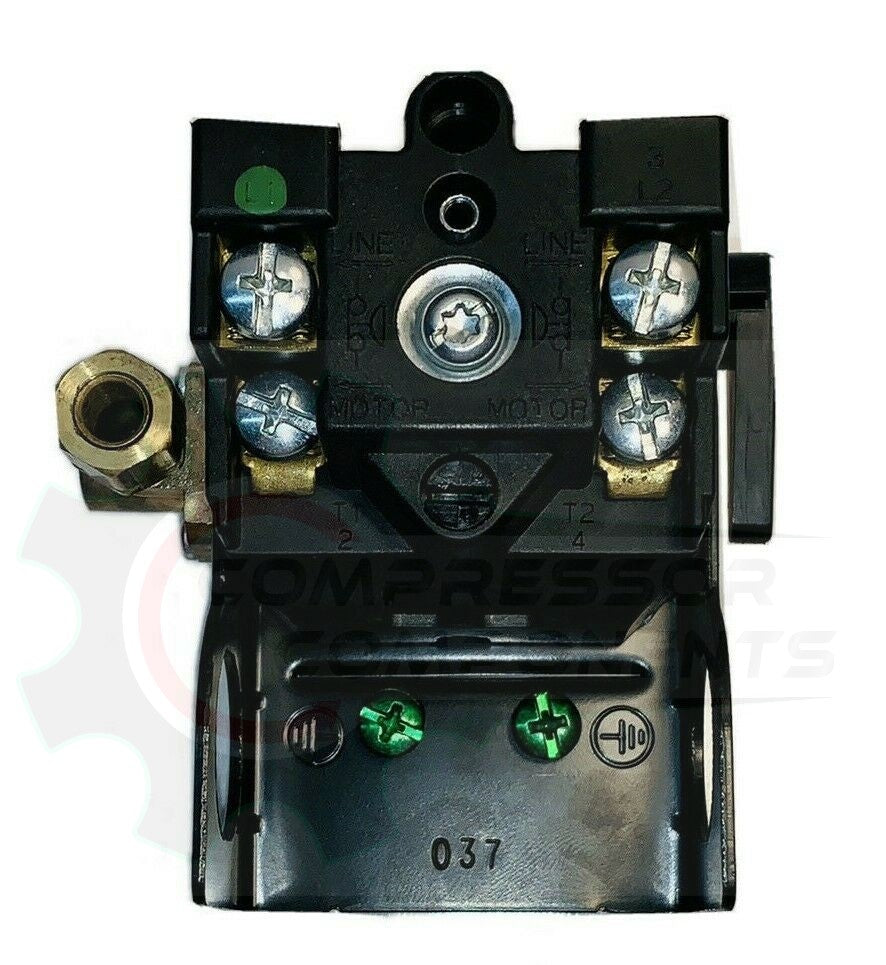

Hubbell 69JF7LY 1-Port Air Compressor Pressure Switch - 95/125 PSI

Hubbell 69JF7LY 1-Port Air Compressor Pressure Switch - 95/125 PSI

Regular price $74.95 USD
Regular price Sale price $74.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New

View full details

Product Description

Hubbell 69JF7LY is a single-port 95/125 PSI air-compressor pressure switch with Auto/Off lever and unloader. This switch has been used across multiple Ingersoll Rand SS-series reciprocating compressor applications and replaces several OEM pressure-switch part numbers listed below.

✓ Verified Replacement Part Numbers

Ingersoll Rand:

  • 56289671
  • 56289671-01
  • 23474661-C
  • 23474661-R
  • 54372834
  • 24374661

Rolair:

  • PS3536

Verified Compressor Applications

Ingersoll Rand:

  • SS3
  • SS3L3
  • SS4L5
  • SS5
  • SS5L5
  • SS5L5/N5

Specifications

Part Number 69JF7LY
Series Hubbell 69JF
Factory Setting 95 PSI cut-in / 125 PSI cut-out
Adjustable Differential 25–33 PSI
Minimum Cut-In 50 PSI
Maximum Cut-Out 145 PSI
Pressure Connection 1/4" female NPT, single port
Control Auto/Off lever
Unloader Included
Motor Ratings 1.5 HP at 120V 1-phase; 2 HP at 240V 1-phase; 3 HP at 240V 3-phase
Unloader connection 1/4" compression

Current Replacement

Hubbell 69JG7LY is the heavier-duty current replacement for 69JF7LY. It retains the same 95/125 PSI, single-port, Auto/Off lever and unloader configuration with higher electrical motor-load capacity.

Application / Selection

For Ingersoll Rand SS-series and Rolair PS3536 applications, verify the existing 95/125 PSI pressure setting, single 1/4" pressure connection, unloader arrangement and motor electrical requirements before installation.

Connection specifications: One 1/4" female NPT pressure port; unloader connection: 1/4" compression.

Pressure Settings

Compressor starts (cut-in) 95 PSI
Compressor stops (cut-out) 125 PSI
Factory differential 30 PSI

Selection and Documentation

Confirm pressure settings, pressure-port arrangement, unloader tubing and the switch’s motor-load rating. Use a correctly rated magnetic starter where the motor load exceeds the switch rating.

Hubbell / WorldWide Electric pressure-switch catalog and model data
