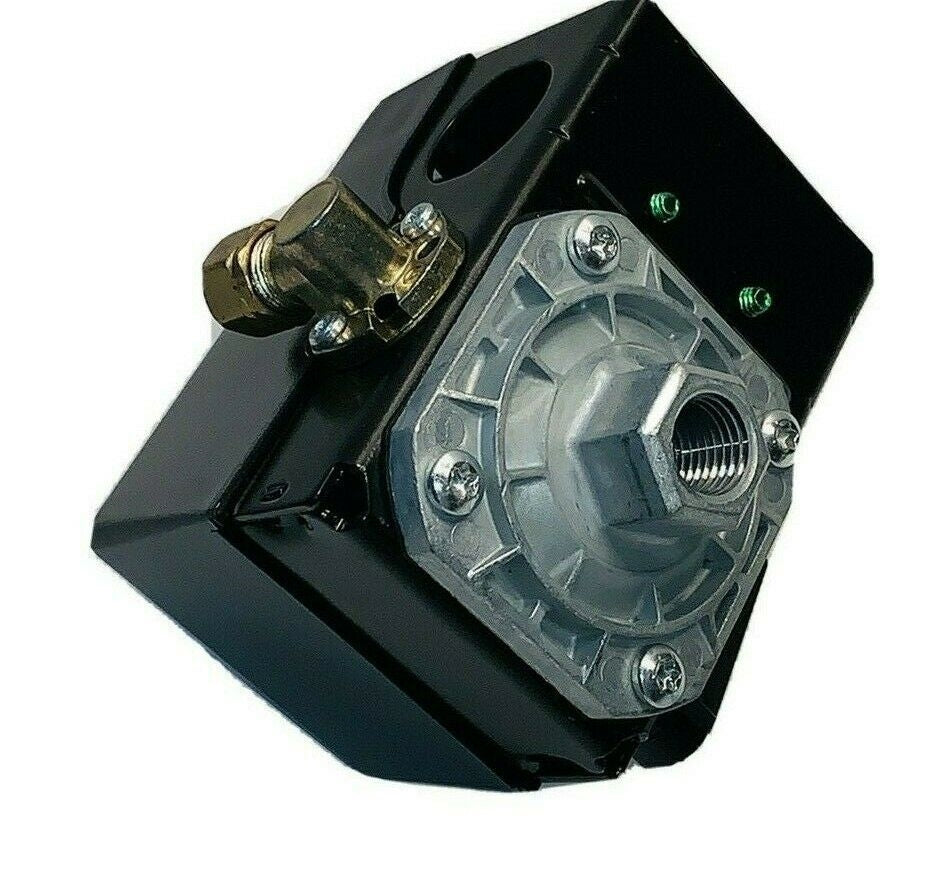

Hubbell 69JF7Y 1-Port Air Compressor Pressure Switch - 95/125 PSI
Hubbell 69JF7Y 1-Port Air Compressor Pressure Switch - 95/125 PSI
Couldn't load pickup availability
View full details
Product Description
Hubbell 69JF7Y is a single-port air-compressor pressure switch factory set for 95 PSI cut-in and 125 PSI cut-out. It includes a rotating unloader for compressor head-pressure unloading.
Specifications
| Part Number | 69JF7Y |
|---|---|
| Series | Hubbell 69JF |
| Factory Setting | 95 / 125 PSI |
| Adjustable Differential | 25–33 PSI |
| Minimum Cut-In | 50 PSI |
| Maximum Cut-Out | 145 PSI |
| Pressure Connection | 1/4" female NPT, single port |
| Unloader | Included, 180° rotating configuration |
| Motor Ratings | 1.5 HP at 120V 1-phase; 2 HP at 240V 1-phase; 3 HP at 240V 3-phase |
| Unloader connection | 1/4" compression |
Current Replacement
Hubbell 69JG7Y is the heavier-duty current replacement for 69JF7Y. It retains the same 95/125 PSI, single-port and rotating-unloader configuration with higher electrical motor-load capacity.
Application / Selection
Match the 95/125 PSI setting, single 1/4" pressure port, rotating unloader arrangement and electrical motor-load requirements before replacement.
Connection specifications: One 1/4" female NPT pressure port; unloader connection: 1/4" compression.
Pressure Settings
| Compressor starts (cut-in) | 95 PSI |
|---|---|
| Compressor stops (cut-out) | 125 PSI |
| Factory differential | 30 PSI |
Selection and Documentation
Confirm pressure settings, pressure-port arrangement, unloader tubing and the switch’s motor-load rating. Use a correctly rated magnetic starter where the motor load exceeds the switch rating.
Hubbell / WorldWide Electric pressure-switch catalog and model data
