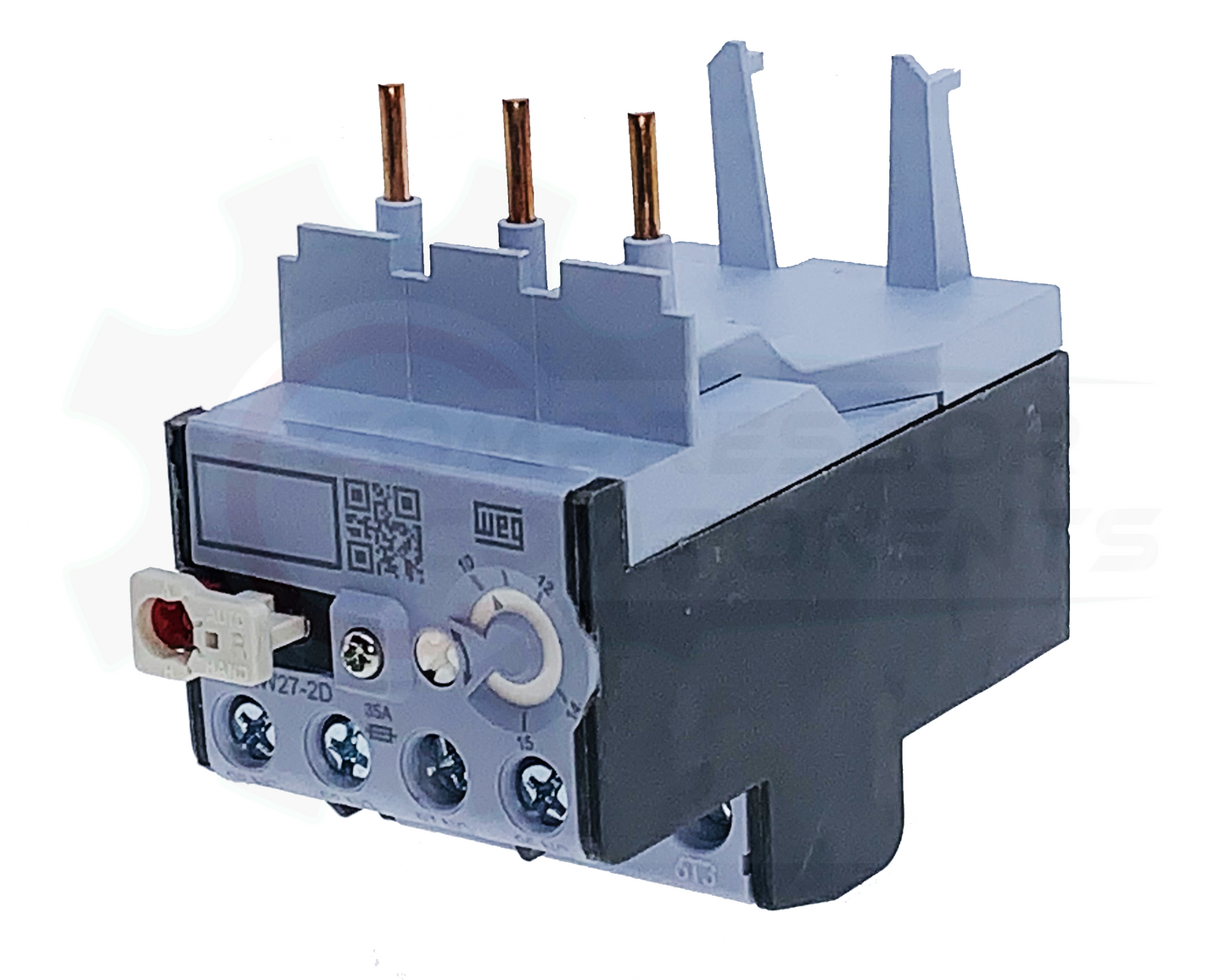

WEG RW27-2D3-U015 10–15A 3-Pole Thermal Overload Relay
WEG RW27-2D3-U015 10–15A 3-Pole Thermal Overload Relay
Regular price
$64.95 USD
Regular price
Sale price
$64.95 USD
Unit price
per
Orders $25 or more ship free to the lower 48. Shipping details.
Condition :
New
Couldn't load pickup availability
View full details
Product Description
WEG RW27-2D3-U015 thermal overload relay with an adjustable 10–15A current range for three-phase motor protection. This 3-pole, Class 10 bimetallic overload relay mounts directly to WEG CWB9–CWB38 contactors.
Technical Specifications
| Manufacturer | WEG |
|---|---|
| Part number | RW27-2D3-U015 |
| Adjustable current range | 10–15A |
| Poles | 3 |
| Trip class | Class 10 |
| Auxiliary contacts | 1NO + 1NC |
| Reset | Manual or automatic |
| Protection features | Phase-loss sensitivity and ambient-temperature compensation |
Direct-mount contactor platform: WEG CWB9–CWB38
Compatible WEG Contactors We Carry
- CWB12-11-30D02 — 12A, 24 VAC
- CWB12-11-30D15 — 12A, 120 VAC
- CWB12-11-30V24 — 12A, 208-240 VAC
- CWB25-11-30C03 — 25A, 24 VDC
- CWB25-11-30D02 — 25A, 24 VAC
- CWB25-11-30D15 — 25A, 120 VAC
- CWB25-11-30V24 — 25A, 208-240 VAC
How to Select the Overload
Select the overload from the motor nameplate full-load current and the requirements of the starter/application. Mechanical compatibility with the contactor does not by itself determine the correct overload. Do not select an overload solely from motor horsepower.
