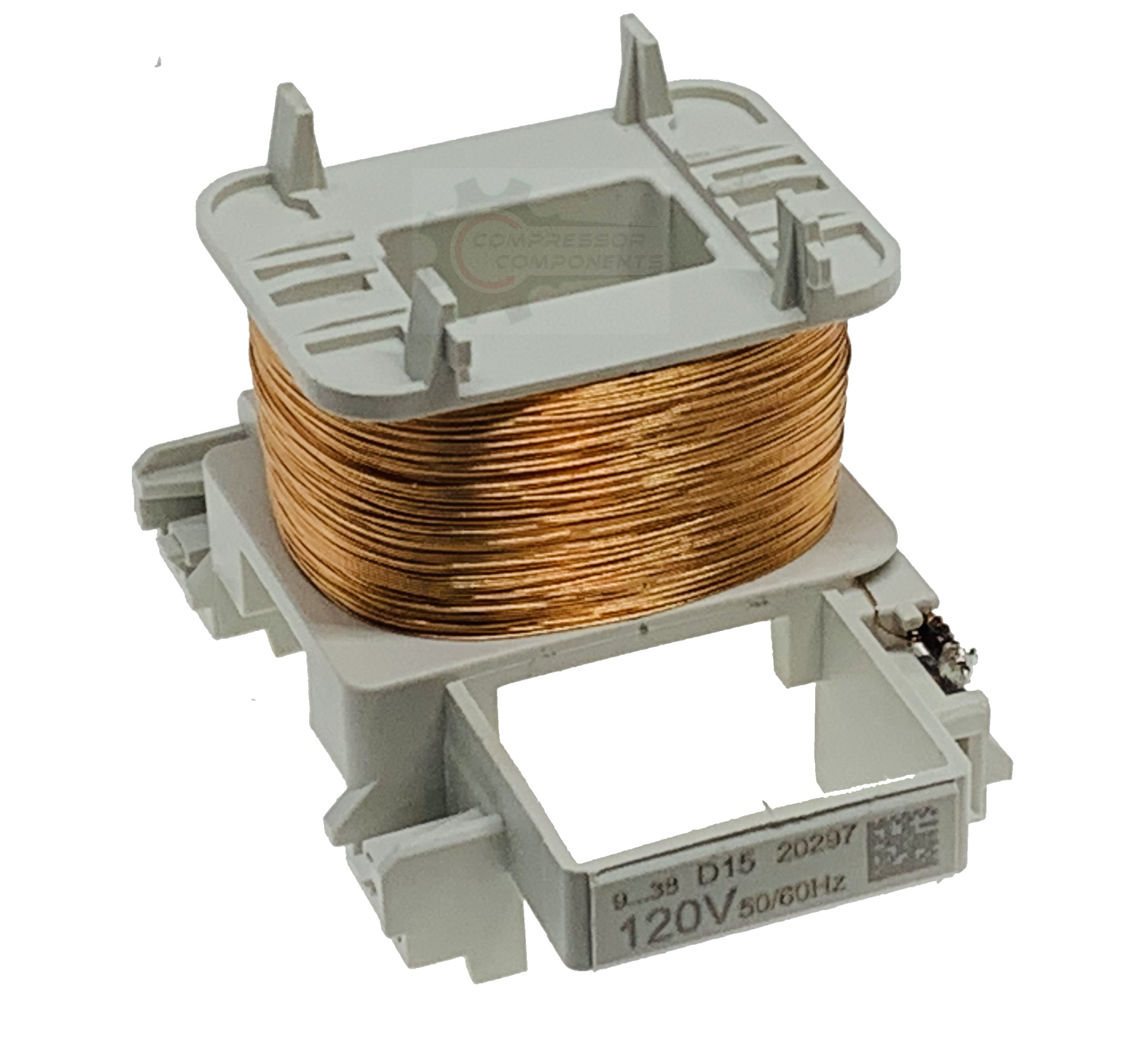

WEG BRB-38D15 120V AC Replacement Coil for CWB9–38 & CWBN0–1 Contactors

WEG BRB-38D15 replacement magnetic coil for WEG CWB-series contactors. This genuine WEG coil provides 120 VAC, 50/60 Hz control for compatible CWB contactors and enclosed starter assemblies.

Technical Specifications

• Manufacturer: WEG
• Part number: BRB-38D15
• WEG material number: 12949297
• Coil voltage: 120 VAC
• Frequency: 50/60 Hz
• Control type: AC
• Compatible contactor family: CWB9 through CWB38 / CWBN00 through CWBN1

Compatible WEG Contactor Family

BRB-38D15 is the 120 VAC replacement coil for the WEG CWB9–CWB38 frame family. Verify the contactor model and required control voltage before ordering; coil voltage must match the control circuit.

Other BRB-38 Replacement Coil Voltages We Carry

• BRB-38D02 — 24 VAC, 50/60 Hz
• BRB-38D77 — 208 VAC, 50/60 Hz
• BRB-38D39 — 480 VAC, 50/60 Hz

Selection Note

BRB-38 coils are for the CWB9–CWB38 / CWBN00–1 platform. Do not select this coil for larger CWB40–CWB80 contactors. AC and DC replacement coils are not interchangeable.

Need help confirming the correct coil? Contact Compressor Components with the WEG contactor model and control voltage and we can help verify the correct replacement before you order.

Compatible CWB12 contactor: CWB12-11-30D02 - 12A, 3-pole contactor with 24 VAC coil
