WEG BRB-38D39 480V AC Replacement Coil for CWB9–38 & CWBN00–1 Contactors
WEG BRB-38D39 480V AC Replacement Coil for CWB9–38 & CWBN00–1 Contactors
Couldn't load pickup availability
View full details
Product Description

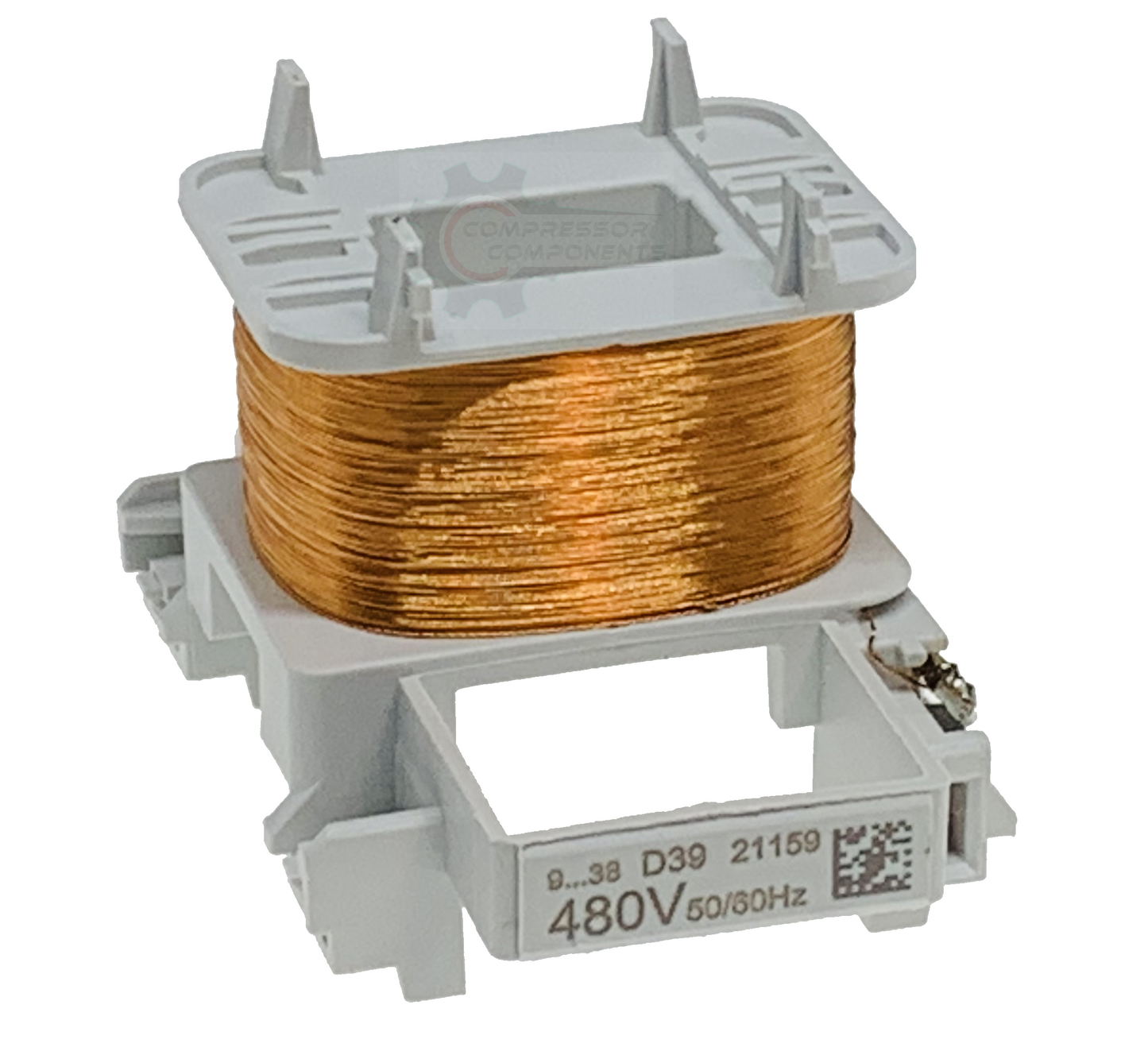

WEG BRB-38D39 replacement magnetic coil for WEG CWB-series contactors. This genuine WEG spare coil provides 480 VAC, 50/60 Hz control for compatible CWB contactors and enclosed starter assemblies.
Technical Specifications
| Manufacturer | WEG |
|---|---|
| Part number | BRB-38D39 |
| WEG material number | 12868233 |
| Coil voltage | 480 VAC |
| Frequency | 50/60 Hz |
| Control type | AC |
| Terminal type | Screw terminal |
Compatible contactor family: CWB9 through CWB38 / CWBN00 through CWBN1
Compatible WEG Contactor Family
BRB-38D39 is the 480 VAC replacement coil for the WEG CWB9–CWB38 frame family. Verify the contactor model and required control voltage before ordering; coil voltage must match the control circuit.
Other BRB-38 Replacement Coil Voltages We Carry
Selection Note
D39 is a 480 VAC coil. BRB-38 coils are for the CWB9–CWB38 / CWBN00–1 platform. Do not select this coil for larger CWB40–CWB80 contactors, which use the BRB-80 coil family.
Need help confirming the correct coil? Contact Compressor Components with the WEG contactor model and control voltage and we can help verify the correct replacement before you order.
Compatible CWB12 contactor: CWB12-11-30D02 - 12A, 3-pole contactor with 24 VAC coil
