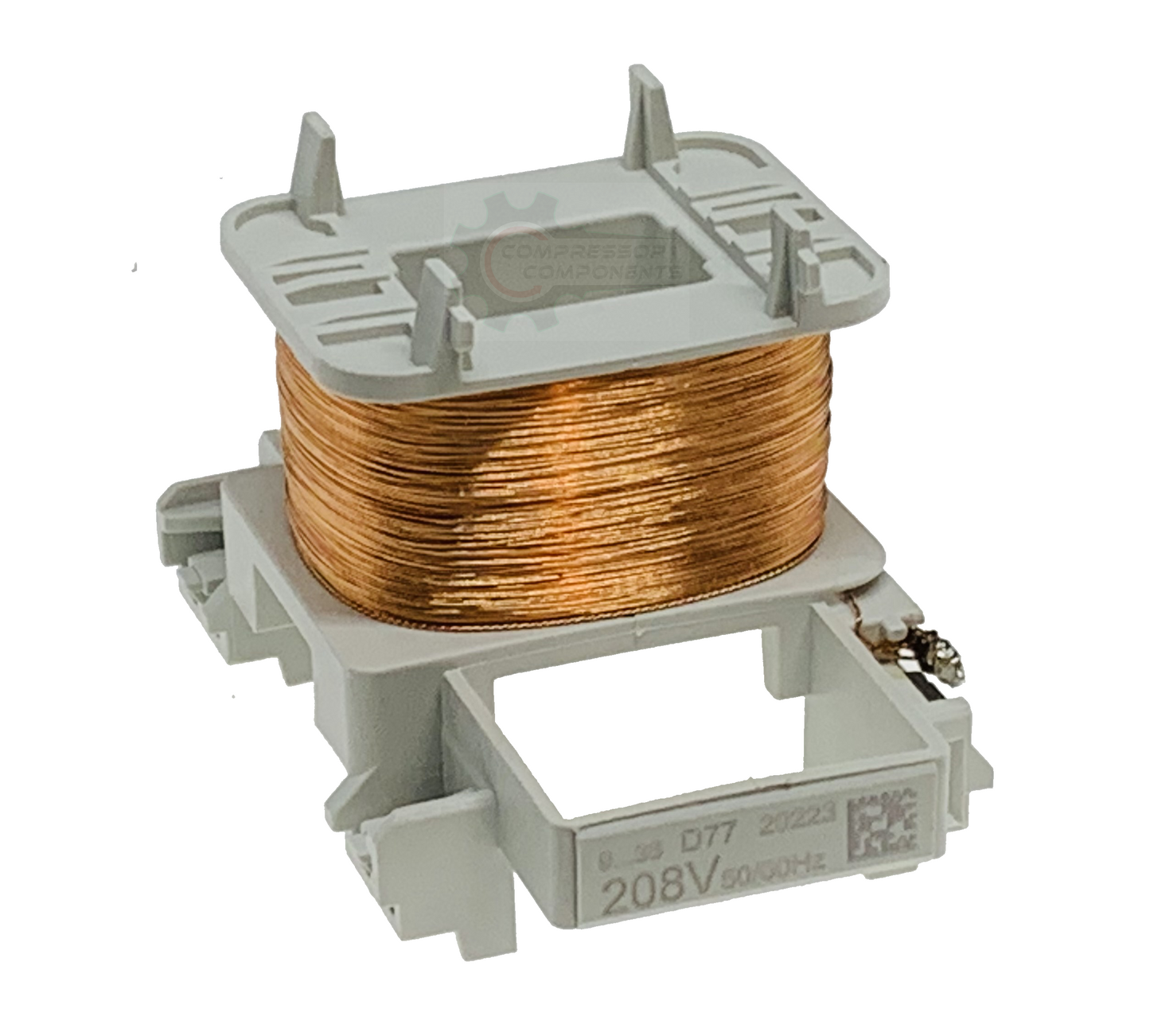

WEG BRB-38D77 208V AC Replacement Coil for CWB9–38 & CWBN00–1 Contactors

WEG BRB-38D77 replacement magnetic coil for WEG CWB-series contactors. This genuine WEG spare coil provides 208 VAC, 50/60 Hz control for compatible CWB contactors.

Technical Specifications

• Manufacturer: WEG
• Part number: BRB-38D77
• Coil voltage: 208 VAC
• Frequency: 50/60 Hz
• Control type: AC
• Compatible contactor family: CWB9 through CWB38 / CWBN00 through CWBN1
• Terminal type: Screw terminal

Compatible WEG Contactor Family

BRB-38D77 is the 208 VAC replacement coil for the WEG CWB9–CWB38 frame family. Verify both the contactor frame and control voltage before ordering.

Other BRB-38 Replacement Coil Voltages We Carry

• BRB-38D02 — 24 VAC, 50/60 Hz
• BRB-38D15 — 120 VAC, 50/60 Hz
• BRB-38D39 — 480 VAC, 50/60 Hz

Selection Note

D77 is a 208 VAC coil. Do not confuse it with WEG's V24 coil code, which covers 180–208 VAC at 50 Hz / 208–240 VAC at 60 Hz. BRB-38 coils are for the CWB9–CWB38 / CWBN00–1 platform and should not be selected for larger CWB40–CWB80 contactors.

Need help confirming the correct coil? Contact Compressor Components with the WEG contactor model and control voltage and we can help verify the correct replacement before you order.

Compatible CWB12 contactor: CWB12-11-30D02 - 12A, 3-pole contactor with 24 VAC coil
