WEG ESWS-B25V24E-RM34 5 HP Single-Phase 208-240V Magnetic Motor Starter
WEG ESWS-B25V24E-RM34 5 HP Single-Phase 208-240V Magnetic Motor Starter
Couldn't load pickup availability
View full details
Product Description

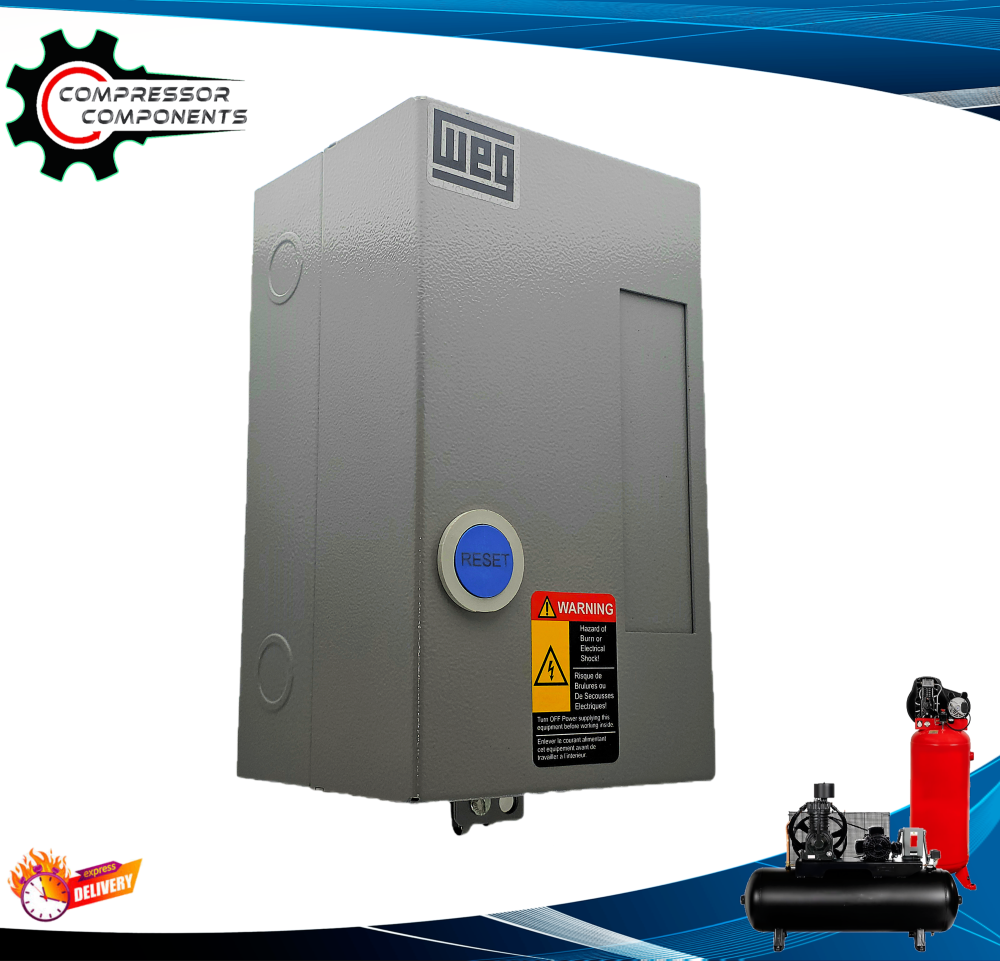

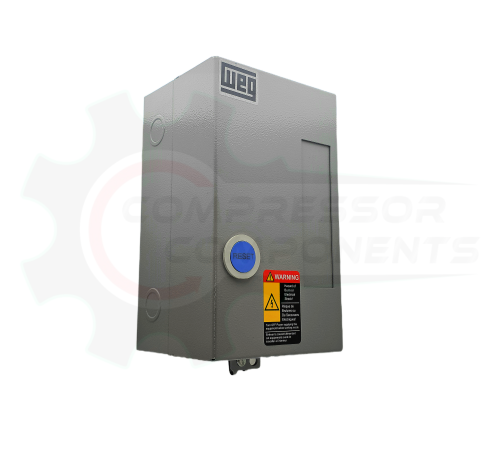

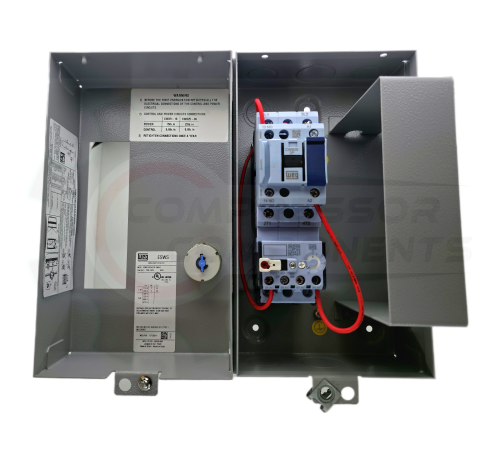

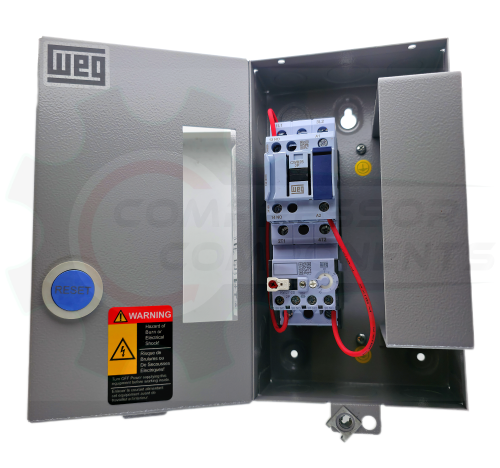

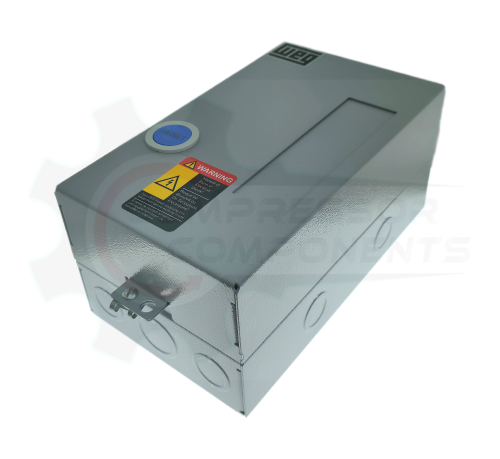

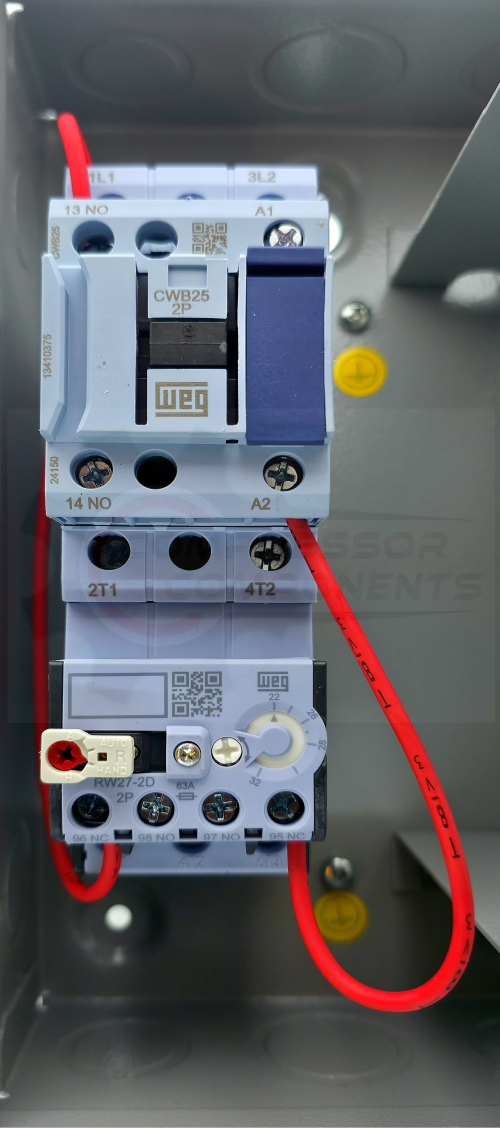

WEG ESWS-B25V24E-RM34 enclosed magnetic motor starter for 5 HP single-phase motors on 208-240V systems. This factory-wired ESWS starter combines a WEG CWB25 contactor with an RW27 thermal overload relay in a metallic NEMA Type 1 indoor enclosure.
Specifications
| WEG item code | ESWS-B25V24E-RM34 |
|---|---|
| Compressor Components SKU | WEG25-5-1-230 |
| Motor rating | 5 HP, single phase |
| Control voltage | 208-240 VAC, 60 Hz (180-208 VAC, 50 Hz) |
| Contactor | WEG CWB25, 25A |
| Overload relay | WEG RW27, 22-32A range |

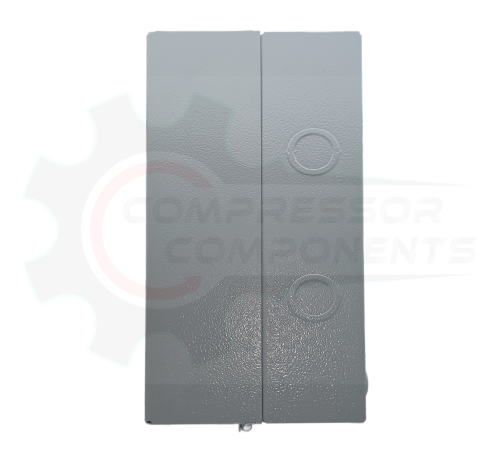

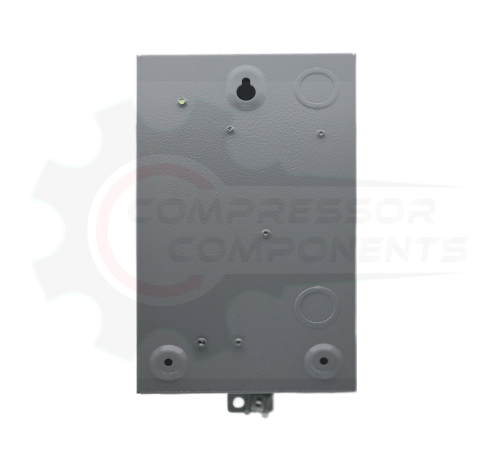

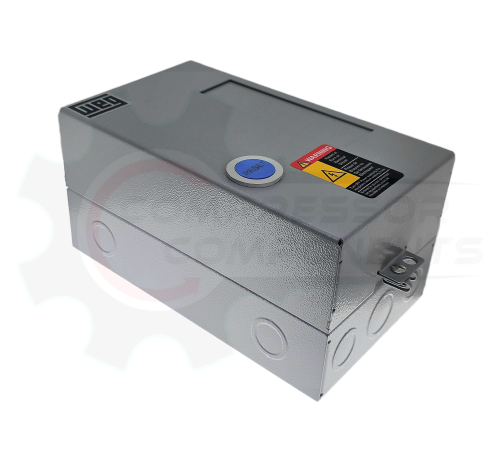

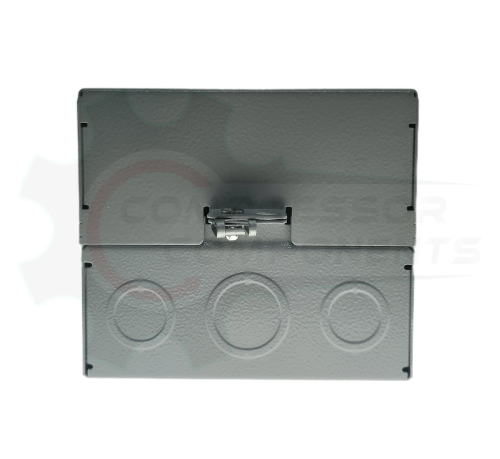

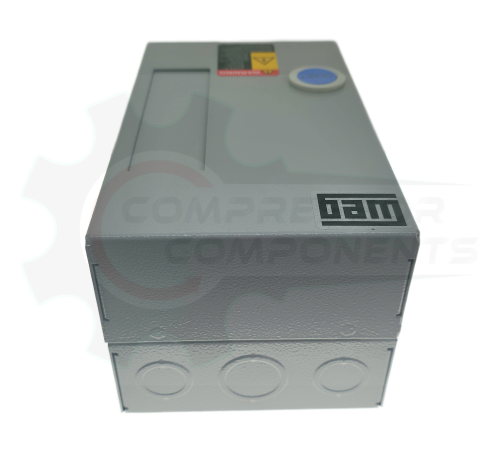

| Enclosure | Metallic NEMA Type 1, indoor |
| Approx. enclosure size | 9.5 x 5.5 x 5 in. |
| Starter type | Direct-on-line, non-reversing, non-combination, single phase |
WEG material / alternate number: 10726014
Compatible Replacement Parts
Compatible Overloads
- WEG RW27-2D2-U010 — 7-10A, 2-pole
- WEG RW27-2D2-D125 — 8-12.5A, 2-pole
- WEG RW27-2D2-U015 — 10-15A, 2-pole
- WEG RW27-2D2-U017 — 11-17A, 2-pole
- WEG RW27-2D2-U023 — 15-23A, 2-pole
Replacement Coils
- WEG BRB-38D02 — 24V
- WEG BRB-38D15 — 110-120V
- WEG BRB-38D77 — 200-208V
- WEG BRB-38V24 — 208-240V
- WEG BRB-38D39 — 440-480V
Air Compressor Applications
Designed for 5 HP single-phase motor applications and well suited to air compressors where the motor nameplate full-load current falls within the starter's 22-32A overload range. Set the overload relay for the actual motor and application requirements; do not select a starter by horsepower alone.
WEG Legacy / Replacement Reference
ESWS-B25V24E-RM34 is the replacement for legacy WEG ESWS-25V24E-RM34.
Compatible WEG Starter Accessories
- BLB-11 — 1NO/1NC Side-Mount Auxiliary Contact Block
- KESWPS — START/STOP Pushbutton Field Kit
- KESWHP — HAND-OFF-AUTO Selector Switch Field Kit
Replacement contactor: WEG CWB25-11-30V24 - 25A, 3-pole, 208-240 VAC coil
