WEG ESW-B25V24E-R33 7.5 HP 230V 3-Phase Magnetic Motor Starter 15-23A
WEG ESW-B25V24E-R33 7.5 HP 230V 3-Phase Magnetic Motor Starter 15-23A
Couldn't load pickup availability
View full details
Product Description

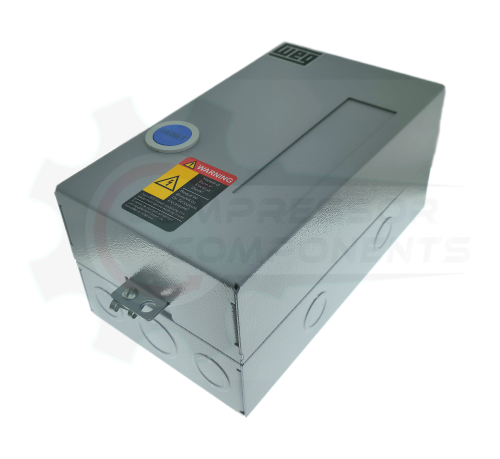

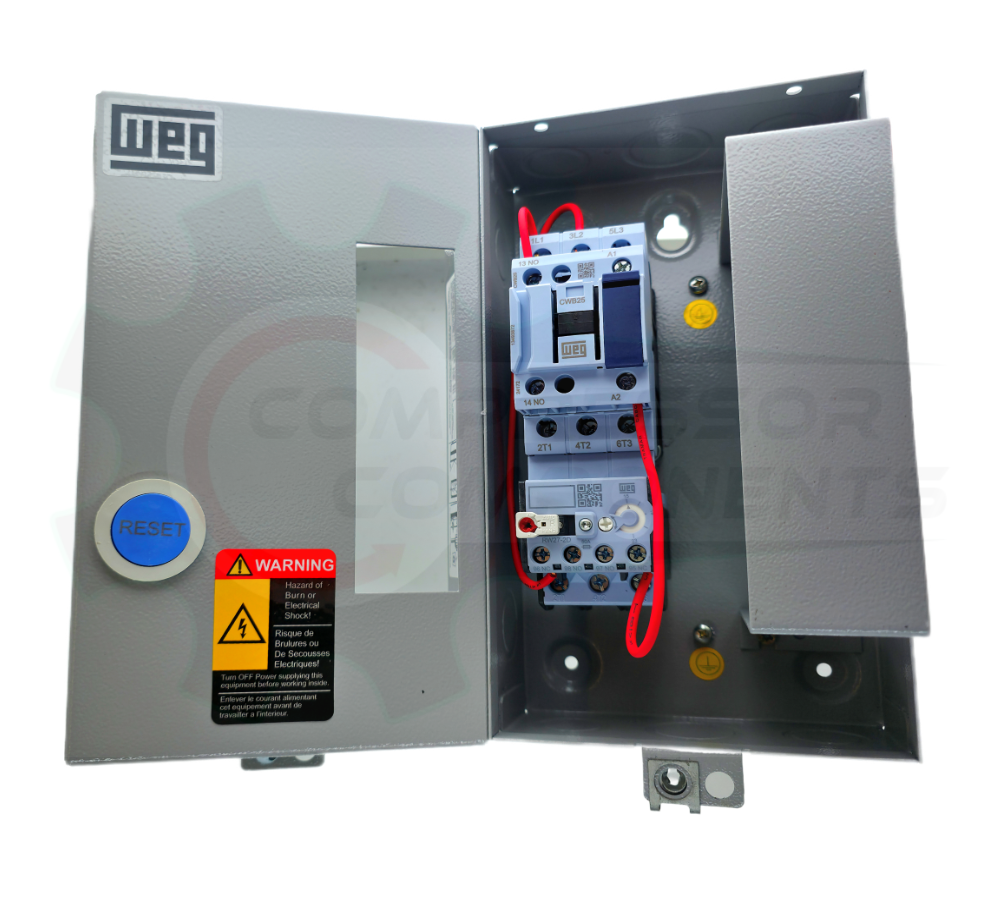

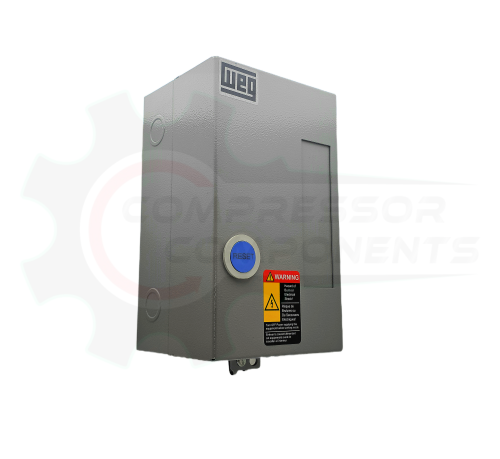

WEG ESW-B25V24E-R33 enclosed magnetic motor starter for 7.5 HP, 208-240V three-phase air-compressor and industrial motor applications. This current-generation WEG ESW starter uses a CWB25 25A contactor with a 15-23A three-pole thermal overload relay and 208-240V control coil in a metallic Type 1 enclosure.
Specifications
| WEG catalog number | ESW-B25V24E-R33 |
|---|---|
| WEG material number | 10687726 |
| Compressor Components SKU | WEG25-7.5-3-230 |
| Motor rating | 7.5 HP at 230V, three phase |

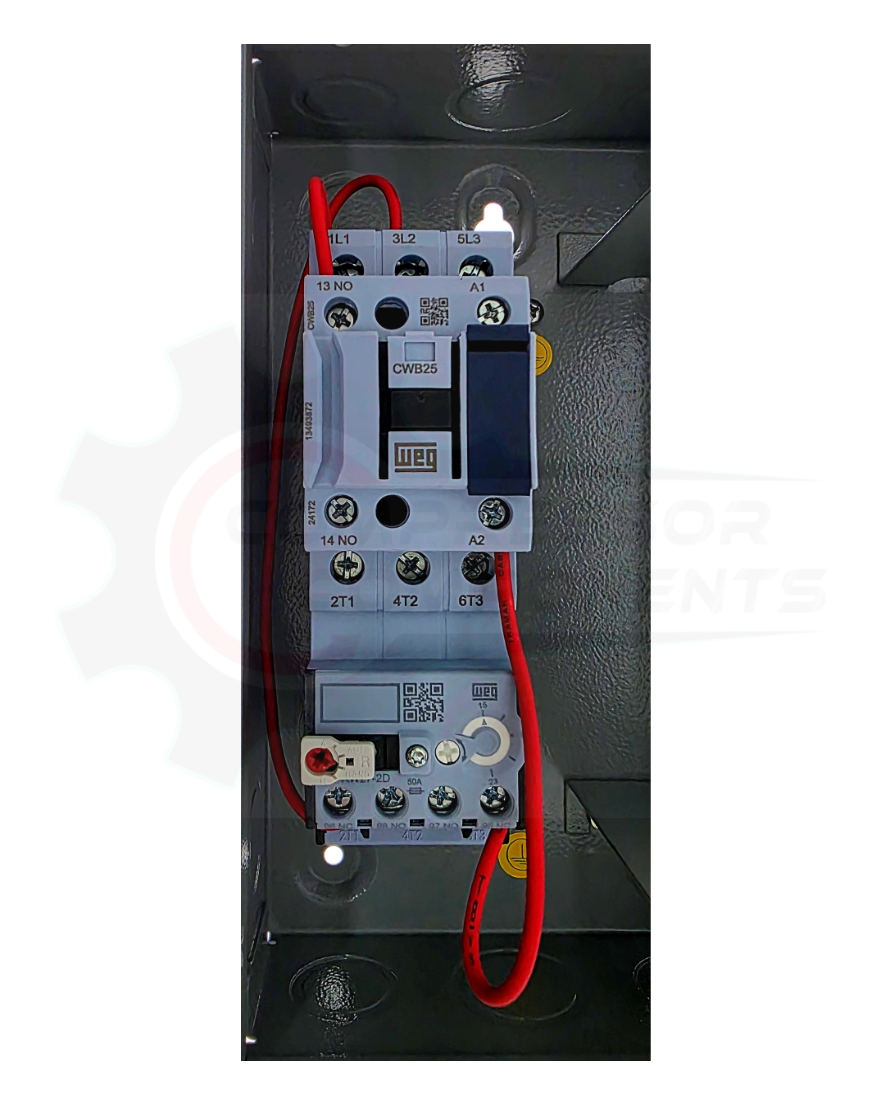

| Contactor | WEG CWB25, 25A |

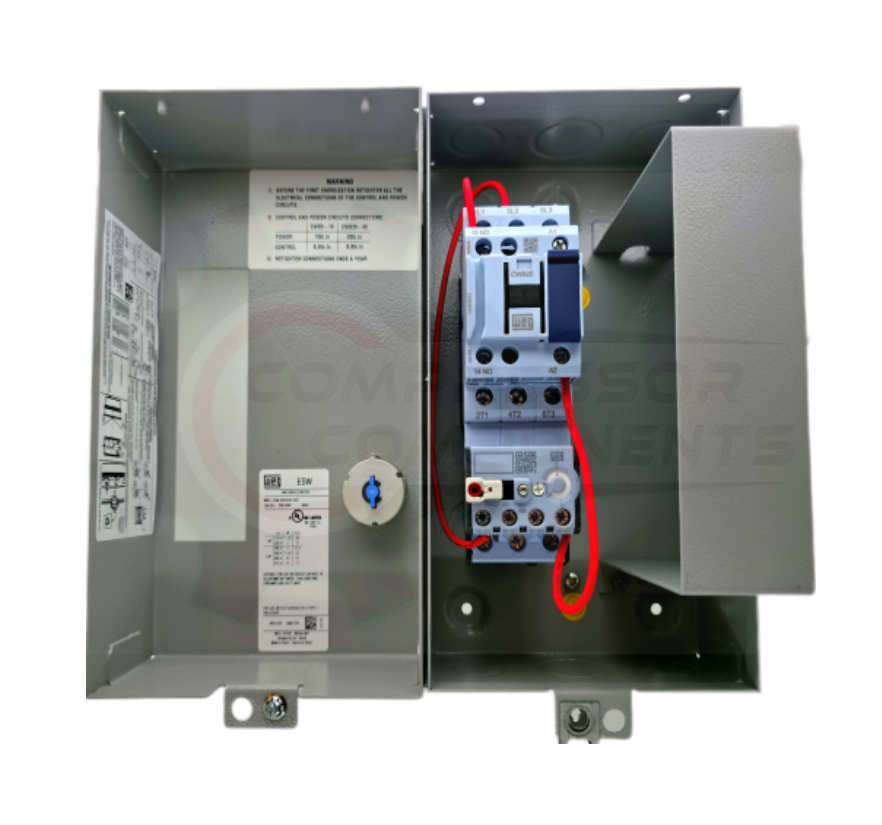

| Factory overload | WEG RW27-2D3-U023, 15-23A, 3-pole |
| Control voltage | 180-208 VAC 50Hz / 208-240 VAC 60Hz |

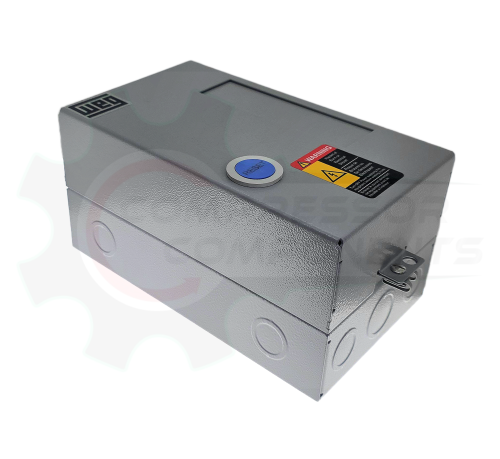

| Enclosure | Metallic Type 1 / NEMA 1, indoor |
| Starter type | Full-voltage, non-reversing, non-combination, three phase |
| Control | Reset only |

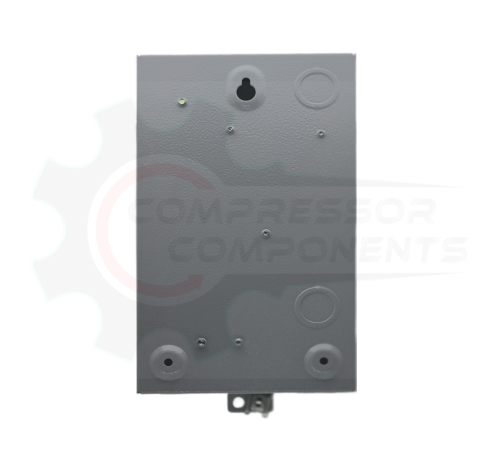

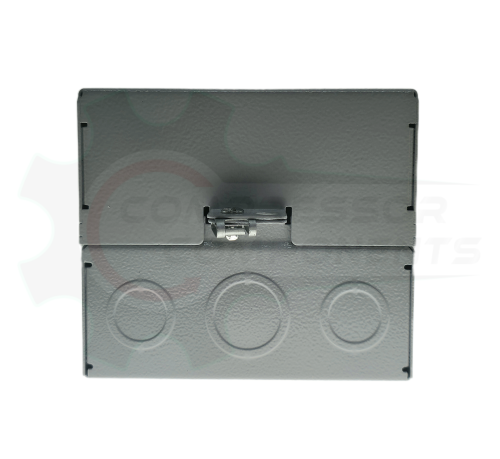

| Approximate enclosure size | 9.5 × 5.5 × 5 in. |
Replacement coil: WEG BRB-38V24
Compatible Replacement Parts
Compatible Overloads
- RW27-2D3-U004 — 2.8-4A, 3-pole
- RW27-2D3-D063 — 4-6.3A, 3-pole
- RW27-2D3-U008 — 5.6-8A, 3-pole
- RW27-2D3-U010 — 7-10A, 3-pole
- RW27-2D3-D125 — 8-12.5A, 3-pole
- RW27-2D3-U015 — 10-15A, 3-pole
- RW27-2D3-U017 — 11-17A, 3-pole
- RW27-2D3-U023 — 15-23A, 3-pole (factory installed)
Replacement Coils
- BRB-38D02 — 24V
- BRB-38D15 — 110-120V
- BRB-38D77 — 200-208V
- BRB-38V24 — 208-240V (factory installed)
- BRB-38D39 — 440-480V
Air Compressor Applications
Suitable for properly matched 7.5 HP, 230V three-phase air-compressor motors and other three-phase motor loads requiring a 15-23A overload range. Do not select a starter by horsepower alone; confirm motor nameplate full-load current, phase, supply voltage, control/coil voltage, overload range and starter capacity before installation.
Champion / Gardner Denver Reference
Champion CC1041148 is specified by Champion for 5 HP 208V and 7.5 HP 230V three-phase air-compressor starter applications. Champion identifies CC1041148 for RV15A applications. Verify the compressor model, motor nameplate current and electrical configuration before replacing an OEM starter, because OEM configurations may differ from the WEG factory assembly.
Search references: ESW-B25V24E-R33, ESWB25V24ER33, 10687726, WEG25-7.5-3-230, CWB25, RW27-2D3-U023, CC1041148.
Compatible WEG Starter Accessories
- BLB-11 — 1NO/1NC Side-Mount Auxiliary Contact Block
- KESWPS — START/STOP Pushbutton Field Kit
- KESWHP — HAND-OFF-AUTO Selector Switch Field Kit
Replacement contactor: WEG CWB25-11-30V24 - 25A, 3-pole, 208-240 VAC coil
