WEG ESWS-B38V24E-RM35 7.5 HP 230V 1-Phase Magnetic Starter – IR 24141111 Replacement

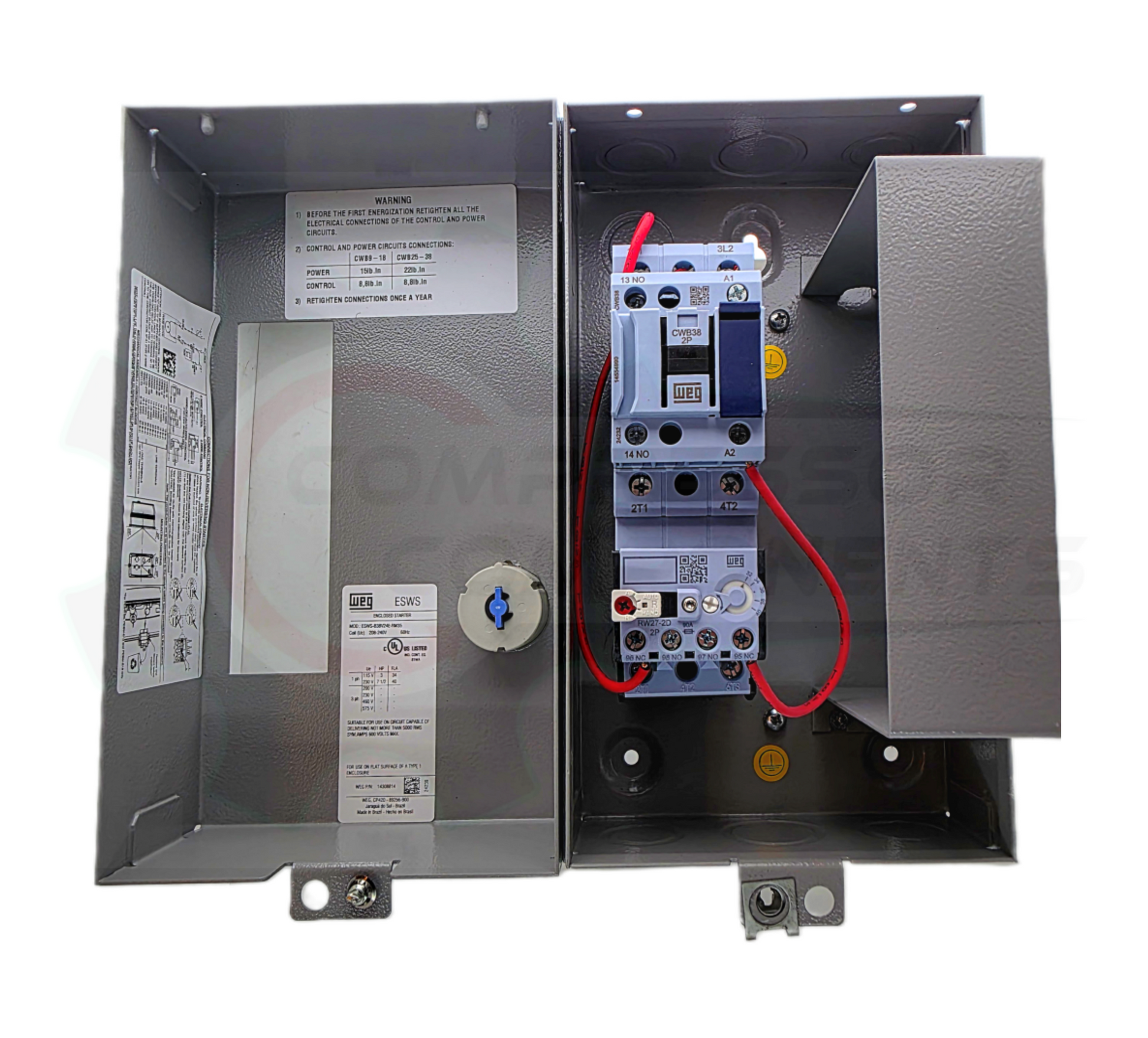

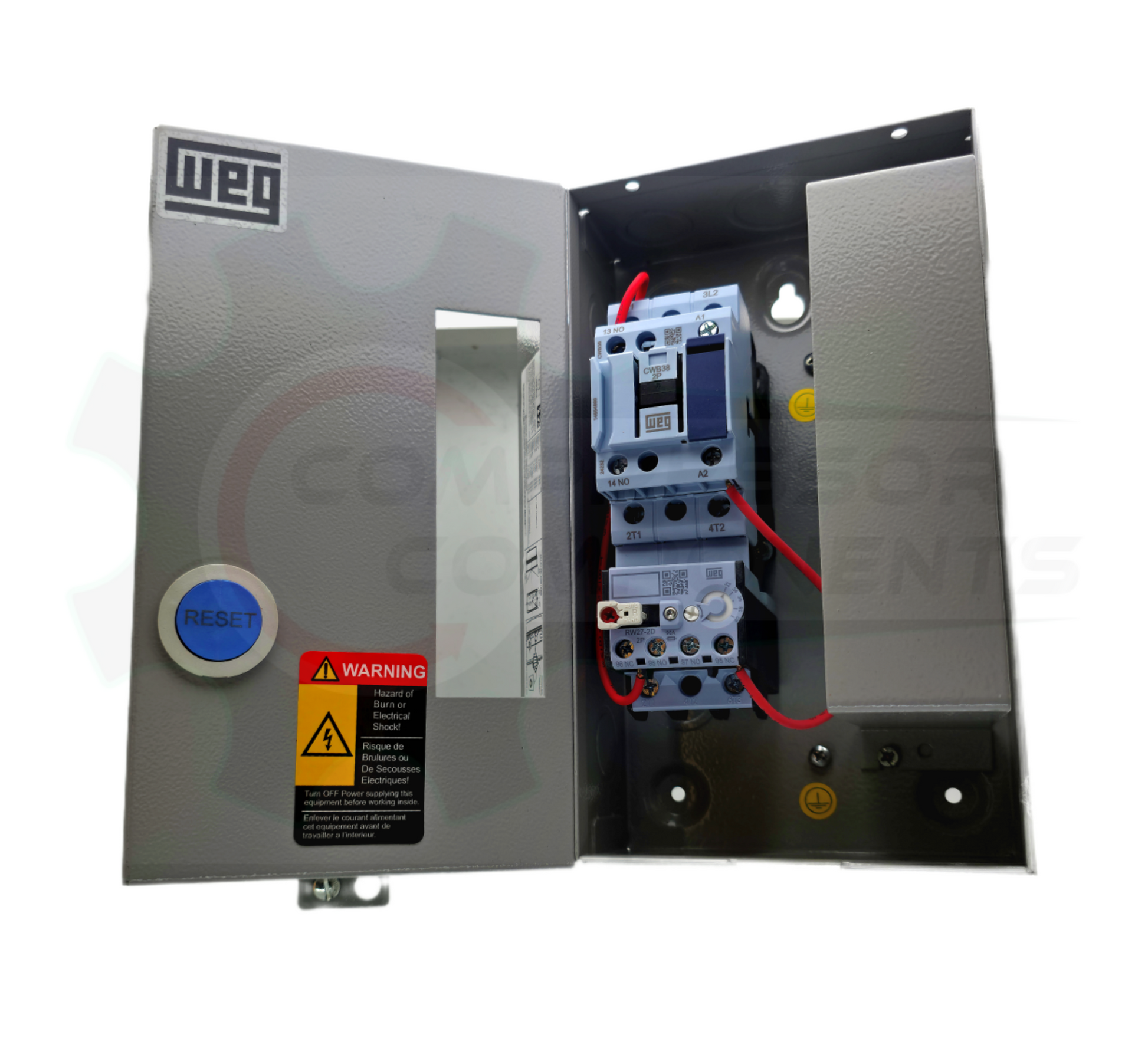

WEG ESWS-B38V24E-RM35 enclosed magnetic motor starter for 7.5 HP, 230V single-phase motors. This current-generation WEG ESWS starter uses the CWB-series motor-control architecture that superseded the legacy CWM-series hardware used in Ingersoll Rand compressor starter assemblies.

Specifications

Replacement coil: WEG BRB-38V24, 180-208V 50Hz / 208-240V 60Hz

Ingersoll Rand / WEG Replacement Reference

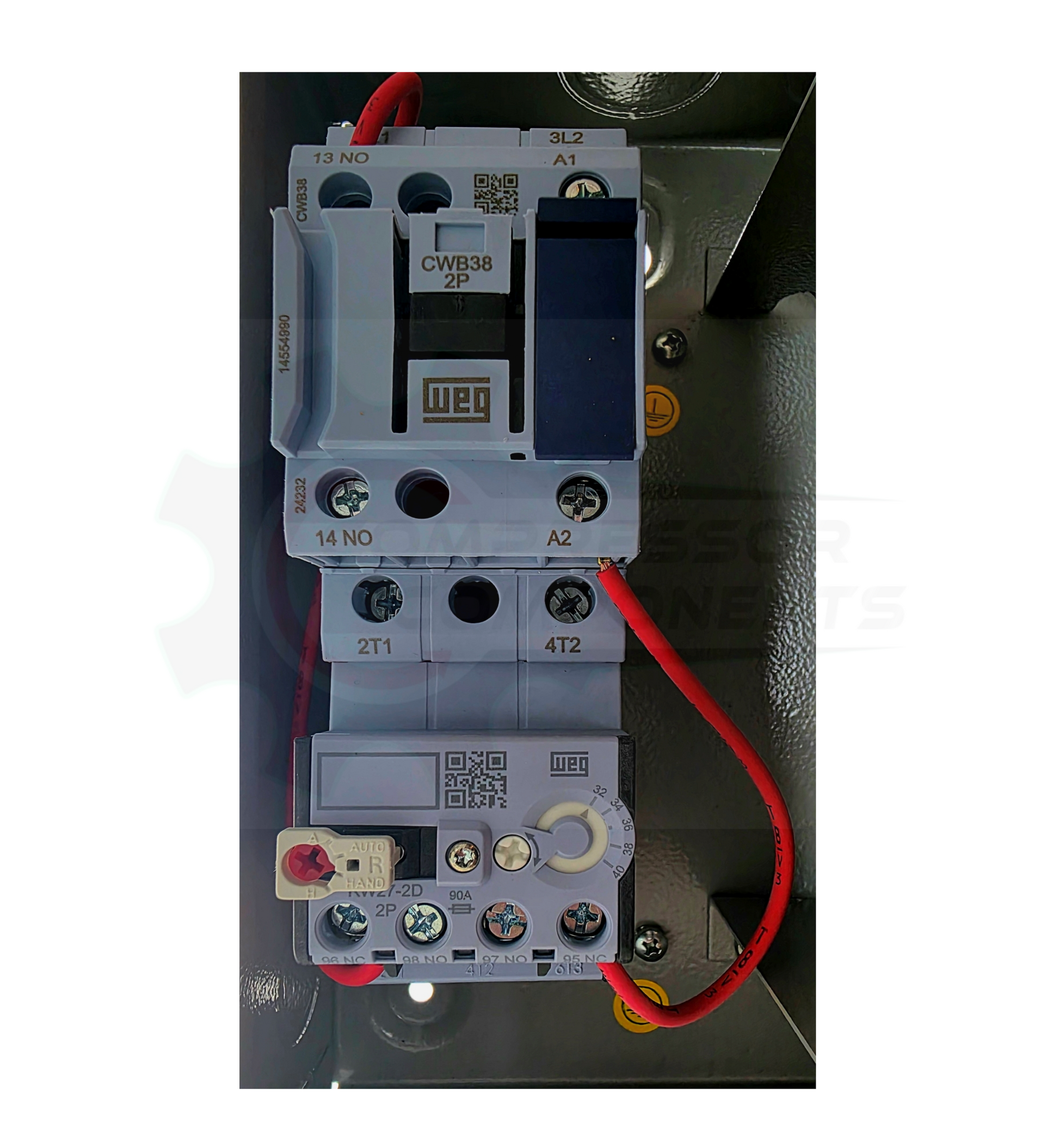

Replaces Ingersoll Rand 24141111 as the current WEG CWB-series contactor/starter solution for applications originally using the WEG CWM40-00-20V24 contactor. Ingersoll Rand factory starter documentation identifies IR 24141111 as the legacy WEG CWM40-00-20V24 contactor in a 230V, 7.5 HP single-phase WEG enclosed starter assembly. WEG's current CWB38 family supersedes the discontinued CWM40 contactor class.

Compatible Replacement Parts

Compatible Overloads

• WEG RW27-2D2-U010 — 7-10A, 2-pole
• WEG RW27-2D2-D125 — 8-12.5A, 2-pole
• WEG RW27-2D2-U015 — 10-15A, 2-pole
• WEG RW27-2D2-U017 — 11-17A, 2-pole
• WEG RW27-2D2-U023 — 15-23A, 2-pole
• WEG RW27-2D2-U032 — 22-32A, 2-pole
• WEG RW27-2D2-U040 — 32-40A, 2-pole (factory installed)

Replacement Coils

• WEG BRB-38D02 — 24V
• WEG BRB-38D15 — 110-120V
• WEG BRB-38D77 — 200-208V
• WEG BRB-38V24 — 208-240V (factory installed)
• WEG BRB-38D39 — 440-480V

Current CWB-series parts are not interchangeable with legacy CWM-series coils or overload relays.

Air Compressor Applications

This configuration is particularly suited to 7.5 HP, 230V single-phase air compressors that originally used the older WEG CWM40 starter architecture. Confirm motor horsepower, phase, supply voltage, control voltage and motor nameplate full-load current before installation.

Compatible WEG Starter Accessories

• BLB-11 — 1NO/1NC Side-Mount Auxiliary Contact Block
• KESWPS — START/STOP Pushbutton Field Kit
• KESWHP — HAND-OFF-AUTO Selector Switch Field Kit
